| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-2201#500OPTOISO 3.75KV PUSH PULL 8DIP GW |
5,870 | 2.36 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount |
|
ACPL-M46U-500EOPTOISO 3.75KV OPN COLLECTOR 5SO |
5,609 | 2.39 |
RFQ |
Datasheet |
Tape & Reel (TR) | R²Coupler™ | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 550ns | - | 1.5V | 20mA | 4.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
PS9822-1-F3-N-AXOPTOISO 2.5KV OPEN COLL 8SSOP |
5,437 | 2.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | NEPOC | Not For New Designs | 1 | 1/0 | 2500Vrms | - | DC | Open Collector | 25 mA | 1Mbps | 700ns, 500ns | - | 1.6V | 20mA | 2.7V ~ 3.6V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL-061N#500OPTOISO 3.75KV OPN COLLECTOR 8SO |
5,355 | 2.41 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
HCPL-7710#060OPTOISO 3.75KV PUSH PULL 8DIP |
5,468 | 4.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
PS9924-Y-V-F3-AXOPTOISO 7.5KV OPN COLLECTOR 8DIP |
6,274 | 4.83 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 7500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 25mA | 2.7V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
|
HCPL-0720#500OPTOISO 3.75KV PUSH PULL 8SO |
9,965 | 4.87 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-4661OPTOISO 3.75KV 2CH OPEN COL 8DIP |
6,003 | 5.04 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
PS9513L2-AXOPTOISO 5KV OPEN COLL 8DIP GW |
5,123 | 4.09 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | -40°C ~ 100°C | Surface Mount |
|
PS9513L2-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
7,605 | 4.09 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | -40°C ~ 100°C | Surface Mount |
|
PS9513-V-AXOPTOISO 5KV OPEN COLLECTOR 8DIP |
7,656 | 4.16 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | -40°C ~ 100°C | Through Hole |
|
RV1S9209ACCSP-10YV#SC0IPM DRIVER (ACTIVE HIGH OUTPUT) |
14,315 | 0.00 |
RFQ |
Datasheet |
Strip | - | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 200ns, 200ns | 25ns, 5ns | 1.56V | 20mA | 4.5V ~ 20V | -40°C ~ 125°C | Surface Mount |
|

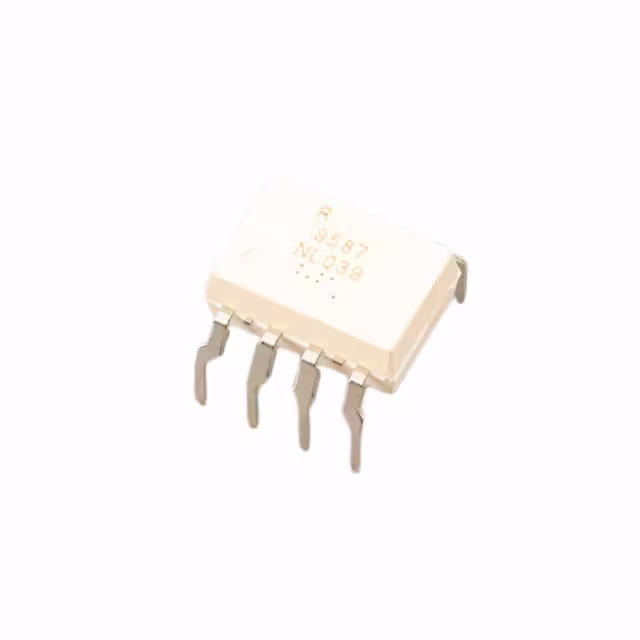

PS9587L1-AXOPTOISO 5KV OPEN COLLECTOR 8DIP |
5,464 | 4.72 |
RFQ |
Datasheet |
Tube | NEPOC | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
PS9151-V-AXSO-5 |
9,356 | 7.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.65V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
PS9117A-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
5,387 | 5.32 |
RFQ |
Datasheet |
Bulk | NEPOC | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
ACSL-7210-06REOPTOISO 3.75KV 2CH PUSH PULL 8SO |
8,867 | 6.58 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 1/1 | 3750Vrms | 25kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 5.1ns, 3.8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
FOD8012AOPTOISO 3.75KV 2CH PUSH PULL 8SO |
8,175 | 7.05 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 1/1 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 15Mbps | 60ns, 60ns | 6.5ns, 6.5ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
|
PS9822-2-AXSO-8 |
2,619 | 10.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NEPOC | Active | 2 | 1/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 20 mA | 1Mbps | 700ns, 500ns | 60ns, 70ns | 1.6V | 15mA | 7V | -40°C ~ 100°C | Surface Mount |
|
|
PS9924-Y-V-AXLSDIP |
1,481 | 12.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 7500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 25mA | 2.7V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
NTE3087OPTOISO 2500VRMS 1CH TRI 8MINDIP |
2,552 | 10.33 |
RFQ |
Datasheet |
Bag | - | Active | 1 | 1/0 | 2500Vrms | 150V/µs | DC | Tri-State | 50 mA | - | 120ns, 120ns | 30ns, 30ns | 1.65V | 20mA | 7V | 0°C ~ 70°C | Through Hole |
