| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP2363(TPL,EHIGH SPEED PHOTOCOUPLER; 10MBD; |
12,027 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10Mbps | 80ns, 80ns | 23ns, 7ns | 1.5V | 25mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
TLP2363(TPR,EHIGH SPEED PHOTOCOUPLER; 10MBD; |
12,408 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10Mbps | 80ns, 80ns | 23ns, 7ns | 1.5V | 25mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
6N137-520EOPTOISO 5KV 1CH OPN COLL 8DIP GW |
10,959 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
6N137-320EOPTOISO 5KV 1CH OPN COLL 8DIP GW |
12,571 | 0.66 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
6N137-360EOPTOISO 3.75KV OPEN COLL 8DIP GW |
14,981 | 0.66 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
TLP5702(EX36 PB-F DRIVER COUPLER 2.5A FAS |
12,190 | 0.67 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 1 A | - | 200ns, 200ns | 15ns, 8ns | 1.55V | 20mA | 15V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
TLP2745(TP,EOPTOISO 5KV PUSH PULL SO6L |
7,927 | 1.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 3ns, 3ns | 1.55V | 15mA | 4.5V ~ 30V | -40°C ~ 110°C | Surface Mount |
|
|
TLP2748(TP,EOPTOISO 5KV PUSH PULL SO6L |
7,871 | 1.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5000Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 3ns, 3ns | 1.55V | 15mA | 4.5V ~ 30V | -40°C ~ 110°C | Surface Mount |
.JPG)
|
TLP2366(TPL,EOPTOISO 3.75KV PSH PULL SO6-5 |
5,575 | 1.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 40ns, 40ns | 15ns, 15ns | 1.61V | 25mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ICPLM611OPTOCOUPLER |
9,262 | 1.63 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15Mbps | 100ns, 100ns | 7ns, 7ns | 1.38V | 20mA | 2.7V ~ 5.5V | -40°C ~ 85°C | Surface Mount | |
|
|
TLP2368(TPL,EOPTOISO 3.75KV OPEN COLL SO6-5 |
9,585 | 1.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 20MBd | 60ns, 60ns | 30ns, 30ns | 1.55V | 25mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ACPL-M21L-500EOPTOISO 3.75KV PUSH PULL 5SO |
5,142 | 3.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 11ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
TLP2270(TP4,EPHOTOCOUPLER HI-SPEED LOW INPUT |
6,953 | 2.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 60ns, 60ns | 1.3ns, 1ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACPL-M61L-500EOPTOISO 3.75KV PUSH PULL 5SO |
9,342 | 3.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-M62L-500EOPTOISO 3.75KV OPEN DRAIN 5SO |
5,848 | 3.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Drain | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|

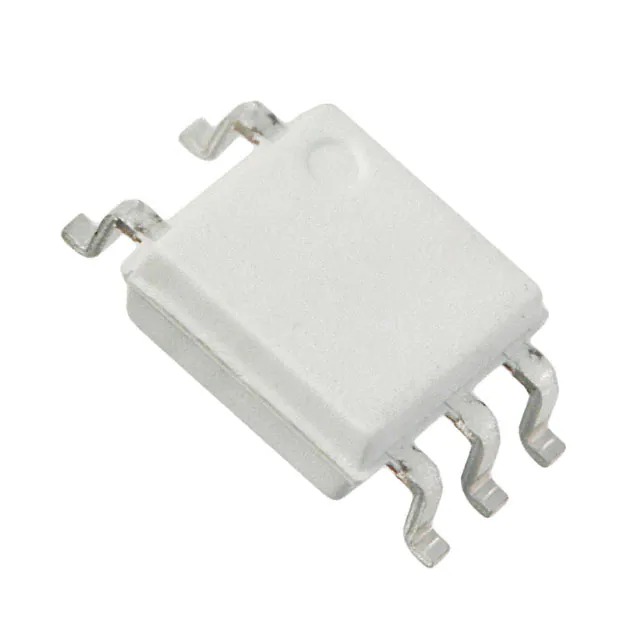

FODM8071R2OPTOISO 3.75KV PUSH PULL 5MFP |
6,218 | 3.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 55ns, 55ns | 5.8ns, 5.3ns | 1.35V | 20mA | 3V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
|
HCPL-M456-500EOPTOISO 3.75KV OPN COLLECTOR 5SO |
8,546 | 3.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
HCPL0600R2OPTOISO 3.75KV OPN COLLECTOR 8SO |
9,075 | 3.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
ACPL-M75L-500EOPTOISO 3.75KV PUSH PULL 5SO |
9,737 | 3.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
HCPL-0466-500EOPTOISO 3.75KV OPN COLLECTOR 8SO |
6,462 | 3.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 400ns | - | 1.5V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount |
