Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

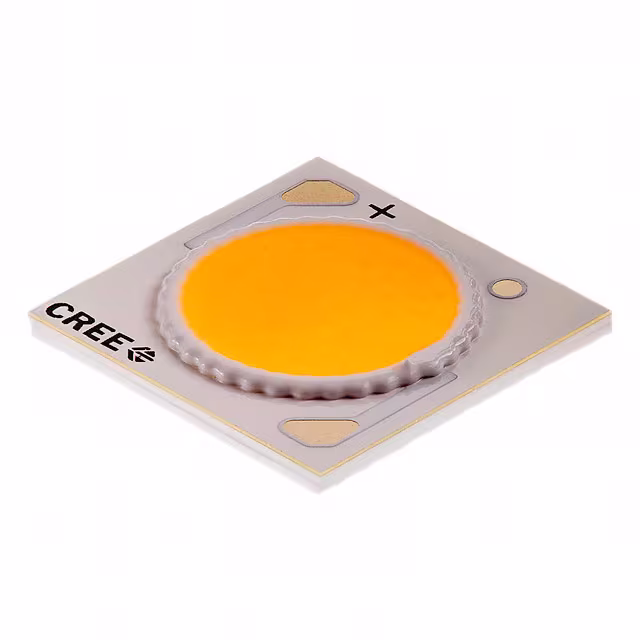

CXA1816-0000-000N0HP257FLED ARRAY XLAMP CXA1816 WHITE |
7,995 | 2.57 |
RFQ |
![]() Datasheet |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 450mA | 85°C | 37V | 114 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
![]() |
CXA1816-0000-000N0HP265FLED ARRAY XLAMP CXA1816 WHITE |
9,690 | 2.57 |
RFQ |
![]() Datasheet |
Tray | XLamp® CXA1816 | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 450mA | 85°C | 37V | 114 lm/W | 900mA | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia |
![]() |
CXA1510-0000-000F00H227FLED COB CX1510 2700K WHITE SMD |
9,463 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 500mA | 85°C | 18V | 104 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000F00H430FLED COB CX1510 3000K WHITE SMD |
8,244 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 500mA | 85°C | 18V | 112 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000F00H435FLED COB CX1510 3500K WHITE SMD |
7,834 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 500mA | 85°C | 18V | 112 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000F0UF227GLED COB CX1510 2700K WHITE SMD |
9,437 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 705lm (680lm ~ 730lm) | 500mA | 85°C | 18V | 78 lm/W | 900mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000F0UF430GLED COB CX1510 3000K WHITE SMD |
8,686 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 500mA | 85°C | 18V | 84 lm/W | 900mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000F0UF435GLED COB CX1510 3500K WHITE SMD |
5,117 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 500mA | 85°C | 18V | 84 lm/W | 900mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000F0UG440GLED COB CX1510 4000K WHITE SMD |
9,526 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 870lm (840lm ~ 900lm) | 500mA | 85°C | 18V | 97 lm/W | 900mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000F0UG450GLED COB CX1510 5000K WHITE SMD |
7,282 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 870lm (840lm ~ 900lm) | 500mA | 85°C | 18V | 97 lm/W | 900mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000F0YF227GLED COB CX1510 2700K WHITE SMD |
7,834 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 705lm (680lm ~ 730lm) | 500mA | 85°C | 18V | 78 lm/W | 900mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000F0YF430GLED COB CX1510 3000K WHITE SMD |
7,321 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 500mA | 85°C | 18V | 84 lm/W | 900mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000F0YF435GLED COB CX1510 3500K WHITE SMD |
8,105 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 500mA | 85°C | 18V | 84 lm/W | 900mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000N00H227FLED COB CX1510 2700K WHITE SMD |
8,564 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 250mA | 85°C | 36V | 104 lm/W | 450mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000N00H430FLED COB CX1510 3000K WHITE SMD |
8,504 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 250mA | 85°C | 36V | 112 lm/W | 450mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000N00H435FLED COB CX1510 3500K WHITE SMD |
6,829 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Square | 1005lm (970lm ~ 1040lm) | 250mA | 85°C | 36V | 112 lm/W | 450mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000N0UF227GLED COB CX1510 2700K WHITE SMD |
8,634 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 705lm (680lm ~ 730lm) | 250mA | 85°C | 36V | 78 lm/W | 450mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000N0UF430GLED COB CX1510 3000K WHITE SMD |
7,682 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 250mA | 85°C | 36V | 84 lm/W | 450mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000N0YF430GLED COB CX1510 3000K WHITE SMD |
7,508 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 250mA | 85°C | 36V | 84 lm/W | 450mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
![]() |
CXA1510-0000-000N0YF435GLED COB CX1510 3500K WHITE SMD |
9,497 | 2.57 |
RFQ |
![]() Datasheet |
Tray | Xlamp® CXA1510 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 755lm (730lm ~ 780lm) | 250mA | 85°C | 36V | 84 lm/W | 450mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
