Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66363G0000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	5,284	3.56	- + RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
B65803P0000Y038 FERRITE CORE RM 5UH T38 2PCS EPCOS - TDK Electronics	8,680	3.58	- + RFQ	Datasheet	Box	RM4/LP	Active	RM	RM 4 LP	T38	-	5 µH	-30%, +40%	Ungapped	4750	2300	1.2	17.3	14.5	11.3	251	Uncoated	0.154 (3.90mm)

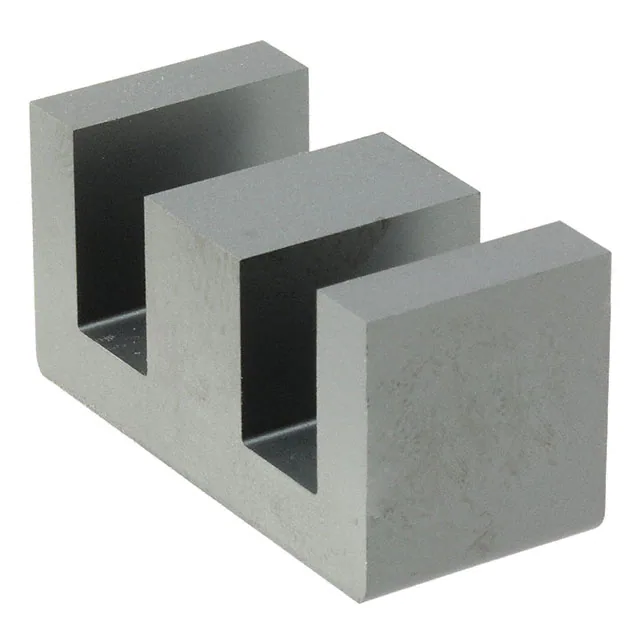

B66329G1500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	7,552	3.69	- + RFQ	Datasheet	Box	E42/21/20	Active	E	E 42 x 21 x 20	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)

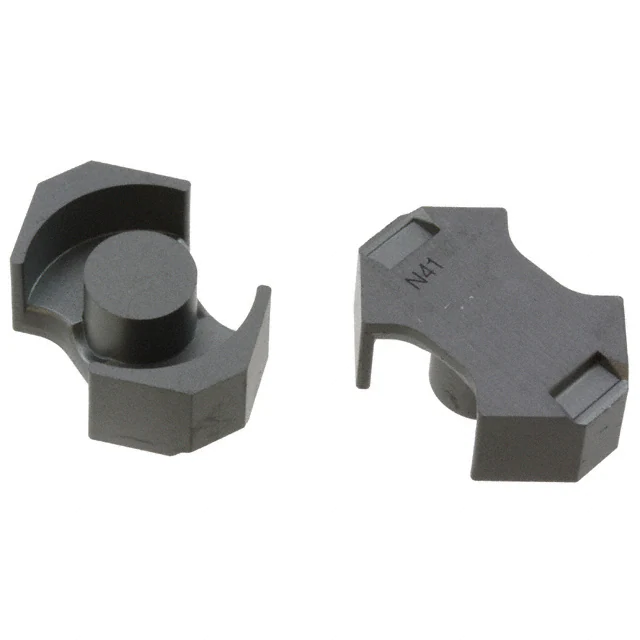

B65811J0000R041 FERRITE CORE RM 4.1UH N41 2PCS EPCOS - TDK Electronics	6,717	3.70	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N41	-	4.1 µH	-20%, +30%	Ungapped	1940	2800	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B65541T0250A048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	5,931	3.71	- + RFQ	Datasheet	Box	P14/8	Active	P (Pot Core)	P 14 x 8	N48	0.563 (14.30mm)	250 nH	±3%	Gapped	159	-	0.8	20	25	20	500	Uncoated	0.167 (4.25mm)

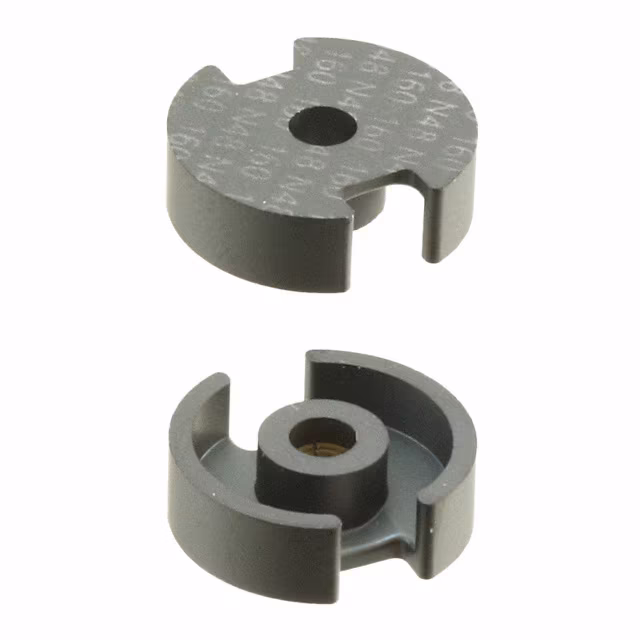

B65541T0160G048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	9,506	3.71	- + RFQ	Datasheet	Box	P14/8	Active	P (Pot Core)	P 14 x 8	N48	0.563 (14.30mm)	160 nH	±3%	Gapped	102	-	0.8	20	25	20	500	Uncoated	0.167 (4.25mm)
B65541T0315A048 FERRITE CORE P 315NH N48 2PCS EPCOS - TDK Electronics	9,736	3.71	- + RFQ	Datasheet	Box	P14/8	Active	P (Pot Core)	P 14 x 8	N48	0.563 (14.30mm)	315 nH	±3%	Gapped	201	-	0.8	20	25	20	500	Uncoated	0.167 (4.25mm)
TX36/23/15-3E27 FERRITE CORES ROUND Ferroxcube	5,164	3.75	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 15	3E27	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.630 (16.00mm)

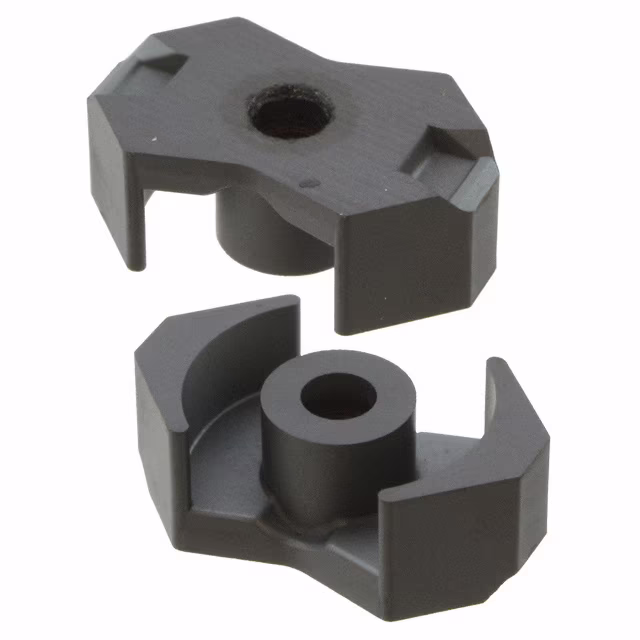

B65807N0160G048 FERRITE CORE RM N48 2PCS EPCOS - TDK Electronics	6,612	3.76	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N48	-	-	-	Gapped	-	-	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
PLT43/28/4.1-3F36 FERRITE CORE Ferroxcube	7,566	3.80	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 43 x 28 x 4.1	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)

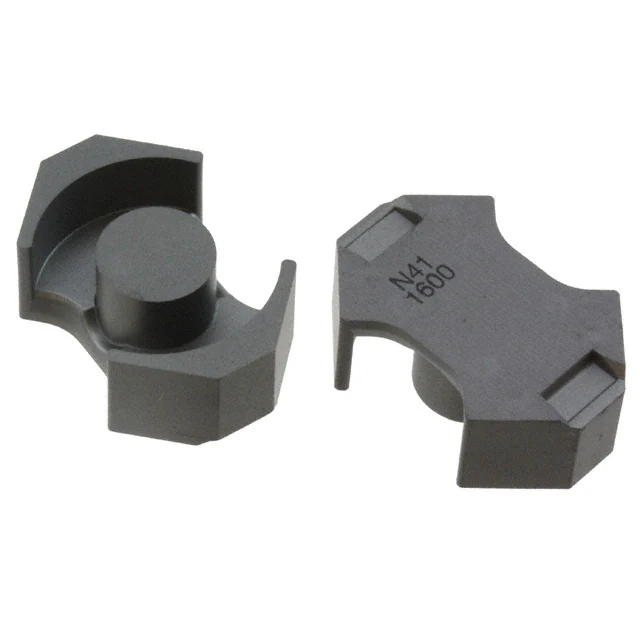

B65811J1600K041 FERRITE CORE RM 1.6UH N41 2PCS EPCOS - TDK Electronics	7,998	3.85	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N41	-	1.6 µH	±10%	Gapped	756	2800	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)

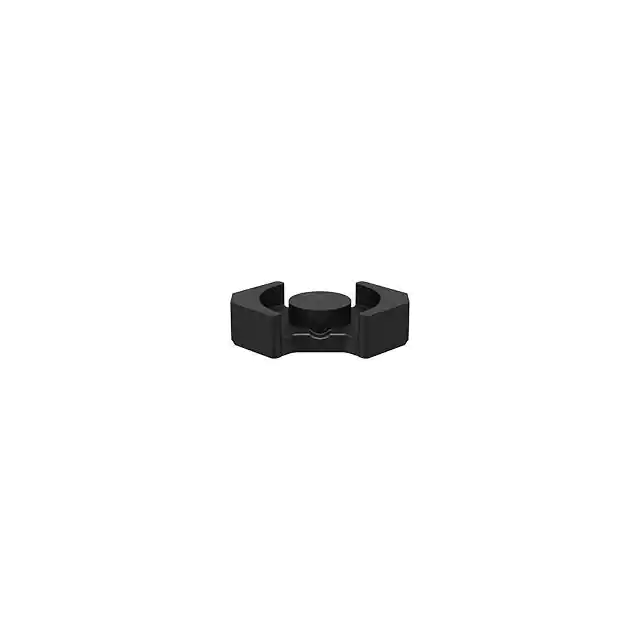

B65811P0000R087 FERRITE CORE RM 4.1UH N87 2PCS EPCOS - TDK Electronics	7,290	3.88	- + RFQ	Datasheet	Tray	RM8/LP	Active	RM	RM 8 LP	N87	-	4.1 µH	-20%, +30%	Ungapped	1440	2200	0.44	28.7	64.9	55.4	1860	Uncoated	0.228 (5.80mm)

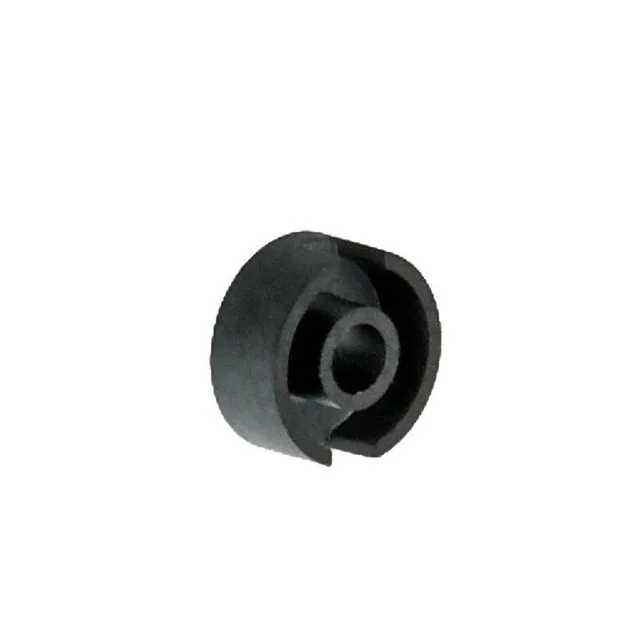

B65495B0000Y030 FERRITE CORE P 800NH N30 2PCS EPCOS - TDK Electronics	7,457	3.98	- + RFQ	Datasheet	Box	P4.6/4.1	Active	P (Pot Core)	P 4.6 x 4.1	N30	0.183 (4.65mm)	800 nH	-30%, +40%	Ungapped	1730	4300	2.7	7.6	2.8	-	21.3	Uncoated	0.079 (2.00mm)
TX32/19/13-3E65 FERRITE CORES ROUND Ferroxcube	5,418	4.01	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 32 x 19 x 13	-	1.281 (32.55mm)	-	±25%	Ungapped	5200	-	0.99	76	76.5	-	5820	Epoxy	0.528 (13.40mm)
B65939A0000X022 FERRITE CORE PS N22 EPCOS - TDK Electronics	9,716	4.02	- + RFQ	Datasheet	Box	PS25/8.9	Active	PS	PS 25 x 8.9	N22	0.976 (24.80mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.350 (8.90mm)

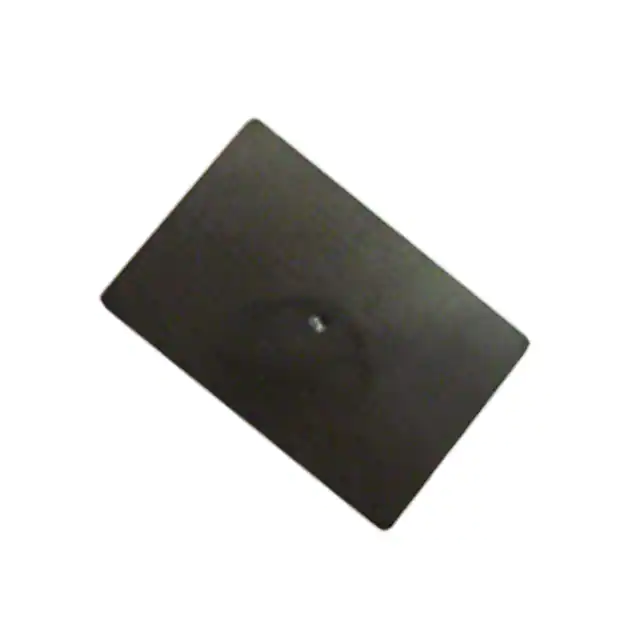

B66506P0000X197 FERRITE CORE I N97 1PC EPCOS - TDK Electronics	7,329	4.04	- + RFQ	Datasheet	Box	B66506	Active	I	I 30 x 3	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.106 (2.70mm)
B66329G1500X187 FERRITE CORE EPCOS - TDK Electronics	7,498	4.04	- + RFQ	Datasheet	Box	E42/21/20	Active	E	E 42 x 21 x 20	N87	-	-	-	Gapped	-	2200	0.41	97	234	229	22700	Uncoated	0.835 (21.20mm)
PQ32/20-3F36 FERRITE CORE 2PC SET Ferroxcube	5,503	4.08	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.811 (20.60mm)
E42/21/20-3C92 FERRITE CORE Ferroxcube	5,021	4.15	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/33/20-3C94 FERRITE CORE Ferroxcube	8,598	4.18	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 33 x 20	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
