Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E19/8/9-3C96-G100 E CORES Ferroxcube	11,567	0.27	- + RFQ	Datasheet	Bulk	-	Active	E	E 19 x 8 x 9	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.317 (8.05mm)
E19/8/9-3C96-G200 E CORES Ferroxcube	11,964	0.27	- + RFQ	Datasheet	Bulk	-	Active	E	E 19 x 8 x 9	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.317 (8.05mm)
E20/10/5-3F36-G100 E CORES Ferroxcube	10,120	0.27	- + RFQ	Datasheet	Bulk	-	Active	E	E 20 x 10 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
E20/10/5-3F36-G200 E CORES Ferroxcube	14,708	0.27	- + RFQ	Datasheet	Bulk	-	Active	E	E 20 x 10 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
PLT14/5/1.5-3C92 PLANAR E CORES Ferroxcube	13,180	0.27	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 14 x 5 x 1.5	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
B62110A2027X022 FERRITE CORES EPCOS - TDK Electronics	11,779	0.27	- + RFQ		Box	TUB2.82/1.15/4.4	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
9578150602 78 ER CORE SET Fair-Rite Products Corp.	14,352	0.27	- + RFQ	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	108	19	17.6	17	333	Uncoated	0.116 (2.95mm)
E19/8/9-3F36 E CORES Ferroxcube	11,425	0.27	- + RFQ	Datasheet	Bulk	-	Active	E	E 19 x 8 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.317 (8.05mm)
B64290L0062X038 FERRITE CORE TOROID 4.41UH T38 EPCOS - TDK Electronics	14,068	0.27	- + RFQ	Datasheet	Box	TX9.5/4.8/3.2	Active	Toroid	-	T38	0.413 (10.50mm)	4.41 µH	±30%	Ungapped	-	10000	2.85	20.72	7.28	-	151	Epoxy	0.161 (4.10mm)
28T0500-10H FB,NIZN,UC Laird-Signal Integrity Products	11,065	0.27	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.506 (12.85mm)	510 nH	±20%	Ungapped	-	850	2.1	31.22	14.9	-	-	Epoxy	0.256 (6.50mm)
PLT14/5/1.5-3C96 PLANAR E CORES Ferroxcube	13,123	0.27	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 14 x 5 x 1.5	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
ROD6/25-4B1 FERRITE ROD Ferroxcube	12,420	0.27	- + RFQ	Datasheet	Bulk	-	Active	ROD	ROD 6 x 25	-	0.236 (6.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
PLT14/5/1.5/S-3C90 PLANAR E CORES Ferroxcube	12,730	0.28	- + RFQ		Bulk	-	Active	E	PLT 14 x 5 x 1.5	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E25/10/6-3F36-G100 E CORES Ferroxcube	11,390	0.28	- + RFQ	Datasheet	Bulk	-	Active	E	E 25 x 10 x 6	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.380 (9.65mm)
E25/10/6-3F36-G200 E CORES Ferroxcube	13,761	0.28	- + RFQ	Datasheet	Bulk	-	Active	E	E 25 x 10 x 6	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.380 (9.65mm)
28T0562-300 NFCC Laird-Signal Integrity Products	14,635	0.00	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	28	0.562 (14.27mm)	-	±25%	Ungapped	-	850	-	-	-	-	-	Uncoated	0.209 (5.30mm)
PLT14/5/1.5-3C95 PLANAR E CORES Ferroxcube	11,895	0.28	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 14 x 5 x 1.5	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)

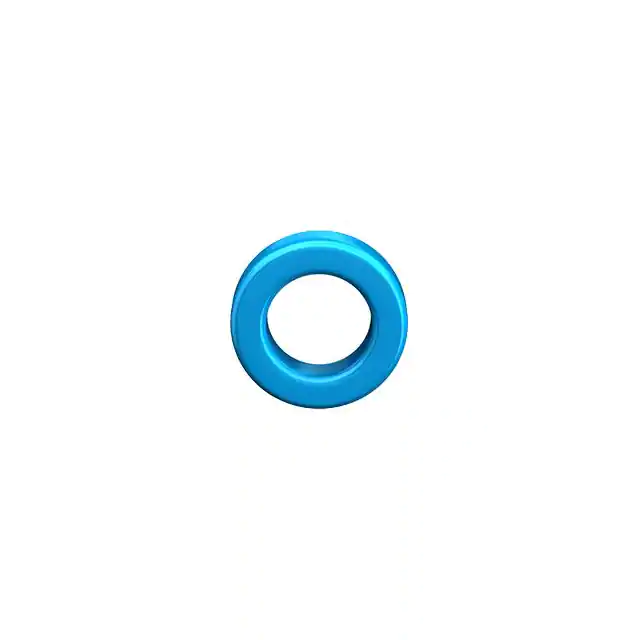

B64290L0044X037 FERRITE CORE TOROID 3.32UH T37 EPCOS - TDK Electronics	10,570	0.28	- + RFQ	Datasheet	Box	TX12.5/7.5/5	Active	Toroid	-	T37	0.535 (13.60mm)	3.32 µH	±25%	Ungapped	-	6500	2.46	30.09	12.23	-	368	Epoxy	0.234 (5.95mm)
B64290L0644X035 FERRITE CORE TOROID 2.83UH T35 EPCOS - TDK Electronics	12,166	0.28	- + RFQ	Datasheet	Box	TX13.3/8.3/5	Active	Toroid	-	T35	0.567 (14.40mm)	2.83 µH	±25%	Ungapped	-	6000	2.67	32.7	12.27	-	401	Epoxy	0.234 (5.95mm)
B64290L0644X037 FERRITE CORE TOROID 3.06UH T37 EPCOS - TDK Electronics	14,120	0.28	- + RFQ	Datasheet	Box	TX13.3/8.3/5	Active	Toroid	-	T37	0.567 (14.40mm)	3.06 µH	±25%	Ungapped	-	6500	2.67	32.7	12.27	-	401	Epoxy	0.234 (5.95mm)
