| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Technology | Type | IsolatedPower | NumberofChannels | Inputs-Side1/Side2 | ChannelType | Voltage-Isolation | CommonModeTransientImmunity(Min) | DataRate | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM1411BRWZDGTL ISO 3750VRMS 4CH GP 16SOIC |
5,105 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 3750Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 5ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ISOW7842DWERDGTL ISO 5000VRMS 4CH GP 16SOIC |
1,409 | 11.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 100kV/µs | 100Mbps | 17.6ns, 17.6ns | 4.7ns | 2ns, 2ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
SI8602AD-B-ISDGT ISOL 5000VRMS 2CH I2C 16SOIC |
6,956 | 7.42 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | I²C | No | 2 | 2/1 | Bidirectional, Unidirectional | 5000Vrms | 35kV/µs | - | - | - | - | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
IL 611-1EDGTL ISO 2500VRMS 2CH GP 8MSOP |
9,466 | 7.49 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 15kV/µs | 100Mbps | 15ns, 15ns | 5ns | 2ns, 2ns | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
IL 511-1EDGTL ISO 2500VRMS 2CH GP 8MSOP |
6,461 | 7.49 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 30kV/µs | 2Mbps | 25ns, 25ns | 10ns | 1ns, 1ns | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
ISOW1432BDFMRLOW EMISSIONS, 5-KVRMS, 12-MBPS |
8,909 | 7.63 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Magnetic Coupling | RS422, RS485 | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 100kV/µs (Typ) | 12Mbps | 610ns, 610ns | 40ns | 4ns, 4ns (Max) | 1.71V ~ 1.89V, 2.25V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
.jpg)
|
IL 3522VEDGTL ISO 6KV RS422/RS485 16SOIC |
5,164 | 7.67 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 6000Vrms | 30kV/µs | 40Mbps | 35ns, 35ns | - | - | 3V ~ 5.5V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
ADUM6422ABRNZ3-RLDGTL ISO 5KV 4CH GEN PRP 28SOIC |
2,260 | 12.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
IL 711-3EDGTL ISO 2500VRMS 2CH GP 8SOIC |
9,093 | 7.72 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
IL 721-3EDGTL ISO 2500VRMS 2CH GP 8SOIC |
9,974 | 7.72 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
ADUM3154BRSZDGT ISOL 3750VRMS 4CH SPI 20SSOP |
7,593 | 8.78 |
RFQ |
Datasheet |
Tube | iCoupler®, SPIsolator™ | Active | Magnetic Coupling | SPI | No | 4 | 3/1 | Unidirectional | 3750Vrms | 25kV/µs | 34Mbps | 14ns, 14ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM3153BRSZDGT ISOL 3750VRMS 7CH SPI 20SSOP |
8,041 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler®, SPIsolator™ | Active | Magnetic Coupling | SPI | No | 7 | 3/4 | Unidirectional | 3750Vrms | 25kV/µs | 34Mbps | 14ns, 14ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM1400WSRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
7,427 | 1.00 |
RFQ |
Bulk,Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount | |
|
|
ADUM1401WSRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
8,011 | 1.00 |
RFQ |
Bulk,Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount | |
|
|
ISOW1412DFMRLOW-EMISSIONS, 500-KBPS, REINFOR |
2,073 | 11.31 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Magnetic Coupling | RS422, RS485 | No | 1 | 1/0 | Unidirectional | 5000Vrms | 100kV/µs (Typ) | 500kbps | 610ns, 610ns | 40ns | 4ns, 4ns (Max) | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount | |
|
|
ADUM3152BRSZDGT ISOL 3750VRMS 7CH SPI 20SSOP |
7,778 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler®, SPIsolator™ | Active | Magnetic Coupling | SPI | No | 7 | 4/3 | Unidirectional | 3750Vrms | 25kV/µs | 34Mbps | 14ns, 14ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
MAX14435FAWE+DGT ISOL 5000VRMS 4CH CAN 16SOIC |
9,854 | 8.19 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | CAN, RS422, RS485 | No | 4 | 3/1 | Unidirectional | 5000Vrms | 50kV/µs (Typ) | 200Mbps | 9.2ns, 9.4ns | 2ns | 1.6ns, 1.4ns | 1.71V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ADUM4150ARIZ-RLDGT ISOL 5000VRMS 6CH SPI 20SOIC |
2,587 | 13.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | iCoupler®, SPIsolator™ | Active | Magnetic Coupling | SPI | No | 6 | 4/2 | Unidirectional | 5000Vrms | 25kV/µs | 40Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
IL 712T-3EDGTL ISO 2500VRMS 2CH GP 8SOIC |
5,937 | 8.30 |
RFQ |
Datasheet |
Tube | IsoLoop® | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|

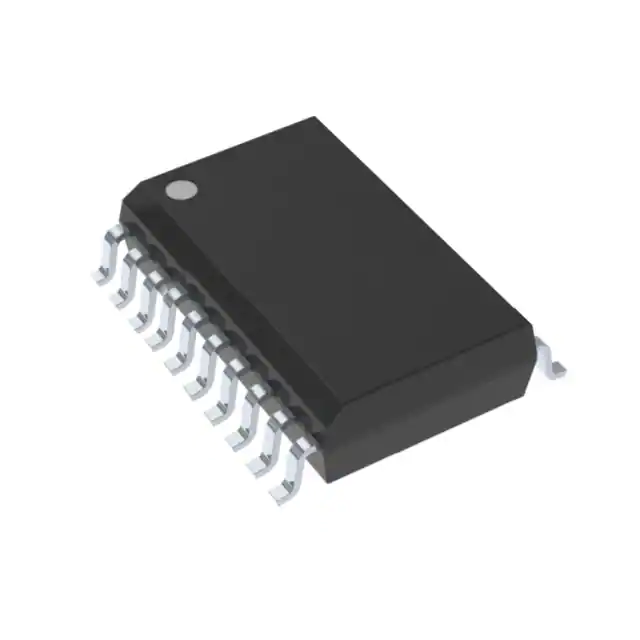

ISO3086DWISO RS485/422 20MBPS 2.5KVRMS |
5,126 | 8.49 |
RFQ |
Datasheet |
Tube | - | Active | Capacitive Coupling | RS422, RS485 | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 20Mbps | - | - | - | 3.15V ~ 5.5V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
