Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
855-305/150-501 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	4,440	93.00	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	150 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-305/100-201 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	3,084	93.00	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	100 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-305/250-501 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	1,100	93.00	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	250 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-305/600-1001 PLUG-IN CURRENT TRANSFORMER; PRI WAGO Corporation	3,248	95.08	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	600 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-305/075-201 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	3,941	95.08	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	75 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-305/300-501 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	4,961	95.08	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	300 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-305/060-101 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	3,983	95.08	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	60 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-305/050-103 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	4,034	95.08	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	50 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-305/400-1001 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	3,221	95.08	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	400 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-405/400-501 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	765	103.90	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	400 A	-	-	-	-	-	-	Chassis Mount	2.756 L x 1.378 W (70.00mm x 35.00mm)	3.589 (91.15mm)

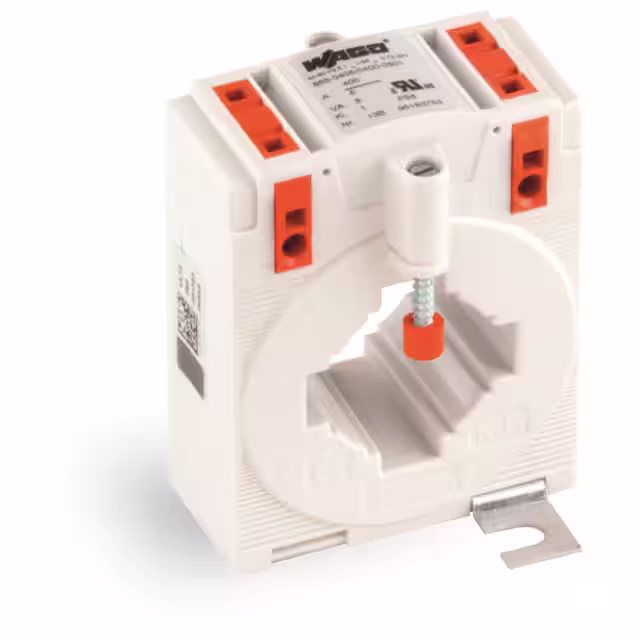

855-405/250-501 PLUG-IN CURRENT TRANSFORMER; PRI WAGO Corporation	403	103.90	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	250 A	-	-	-	-	-	-	Chassis Mount	2.756 L x 1.378 W (70.00mm x 35.00mm)	3.589 (91.15mm)
855-405/750-501 PLUG-IN CURRENT TRANSFORMER; PRI WAGO Corporation	820	103.90	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	750 A	-	-	-	-	-	-	Chassis Mount	2.756 L x 1.378 W (70.00mm x 35.00mm)	3.589 (91.15mm)
855-301/150-501 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	492	109.20	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	150 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-301/075-201 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	402	109.20	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	75 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-301/250-501 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	934	109.20	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	250 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-301/100-201 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	365	109.20	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	100 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-301/400-1001 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	821	111.51	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	400 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-301/050-103 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	612	111.51	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	50 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-301/600-1001 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	996	111.51	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	600 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
855-301/060-101 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	746	111.51	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	60 A	-	-	-	-	-	-	Chassis Mount	2.362 L x 1.378 W (60.00mm x 35.00mm)	3.173 (80.60mm)
