Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
AS-110 XFRMR CURR 15A 1:50CT VRT Amgis, LLC	5,480	2.65	- + RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)

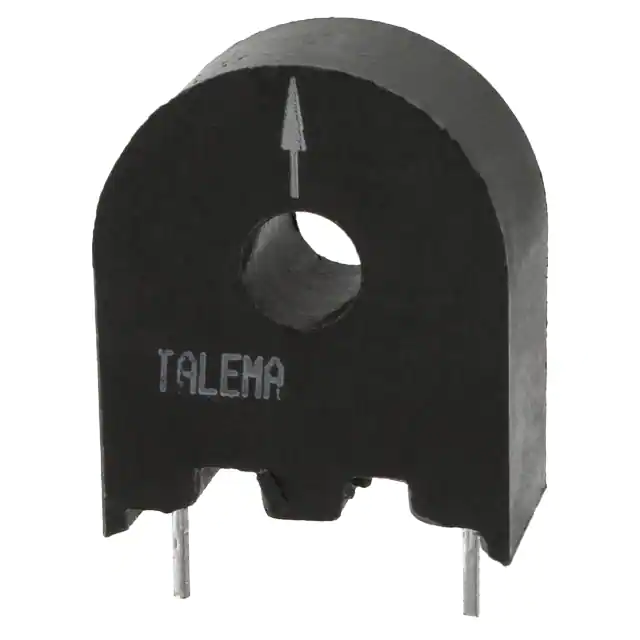

AX-1000 CURR SENSE XFMR 10A T/H Talema Group LLC	6,104	2.68	- + RFQ	Datasheet	Tray	AX	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	1000:1	-	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-111 CURR SENSE XFMR 1:100CT 15A T/H Amgis, LLC	9,081	2.71	- + RFQ	Datasheet	Tray	AS	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	-	25 mH	350VµS	1:100CT	-	550mOhm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-114 CURR SENSE XFMR 1:500CT 15A T/H Amgis, LLC	7,092	2.71	- + RFQ	Datasheet	Tray	AS	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	-	700 mH	1500VµS	1:500CT	-	12.5Ohm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-113 CURR SENSE XFMR 1:300CT 15A T/H Amgis, LLC	8,221	2.71	- + RFQ	Datasheet	Tray	AS	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	-	250 mH	900VµS	1:300CT	-	5Ohm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-400 XFRMR CURR 1A 1:100 VRT Amgis, LLC	9,826	2.77	- + RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.701 L x 0.504 W (17.80mm x 12.80mm)	0.787 (20.00mm)
AS-104 XFRMR CURR 15A 1:500 VRT Amgis, LLC	9,468	2.80	- + RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)

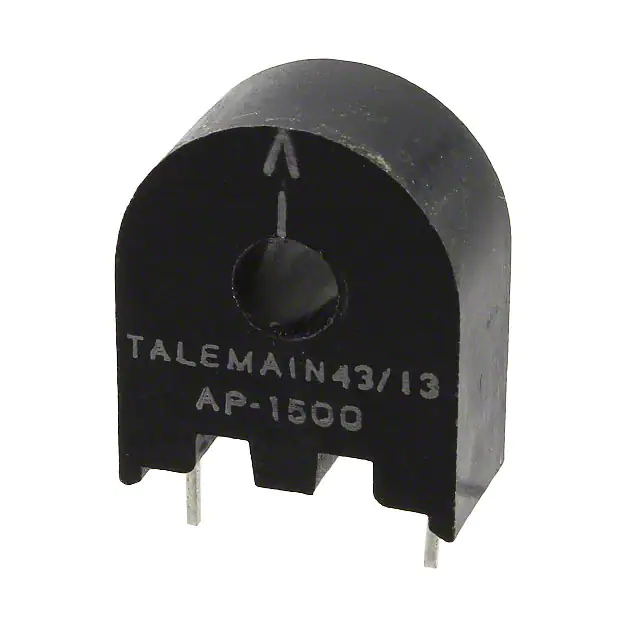

AP-1500 CURR SENSE XFMR 10A T/H Talema Group LLC	7,864	2.81	- + RFQ	Datasheet	Tray	AP	Active	-	Non-Invasive (Solid Core)	10 A	-	-	-	1500:1	120Ohm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-112 CURR SENSE XFMR 1:200CT 15A T/H Amgis, LLC	5,916	2.84	- + RFQ	Datasheet	Tray	AS	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	-	100 mH	700VµS	1:200CT	-	2.25Ohm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-105 XFRMR CURR 30A 1:750 VRT Amgis, LLC	5,989	2.92	- + RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-115 CURR SENSE XFMR 1:750CT 30A T/H Amgis, LLC	7,198	2.97	- + RFQ	Datasheet	Tray	AS	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	-	1.68 mH	3750VµS	1:750CT	-	21.5Ohm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-401 XFRMR CURR 2A 1:100 VRT Amgis, LLC	8,025	3.00	- + RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.984 (25.00mm)

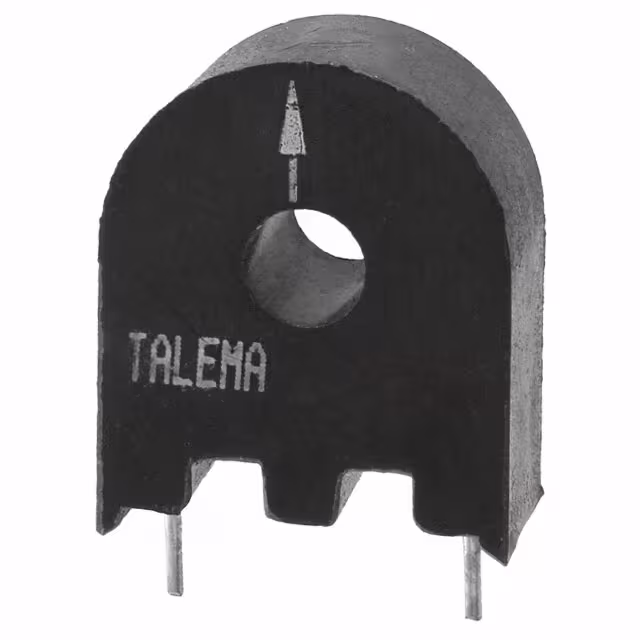

AX-1500 CURR SENSE XFMR 15A T/H Talema Group LLC	8,528	3.01	- + RFQ	Datasheet	Tray	AX	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	1500:1	-	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)

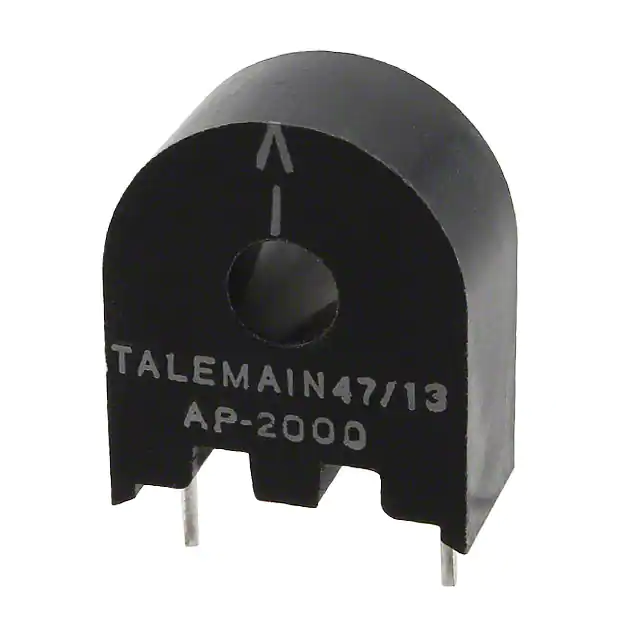

AP-2000 CURR SENSE XFMR 15A T/H Talema Group LLC	8,568	3.07	- + RFQ	Datasheet	Tray	AP	Active	-	Non-Invasive (Solid Core)	15 A	-	-	-	2000:1	235Ohm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)

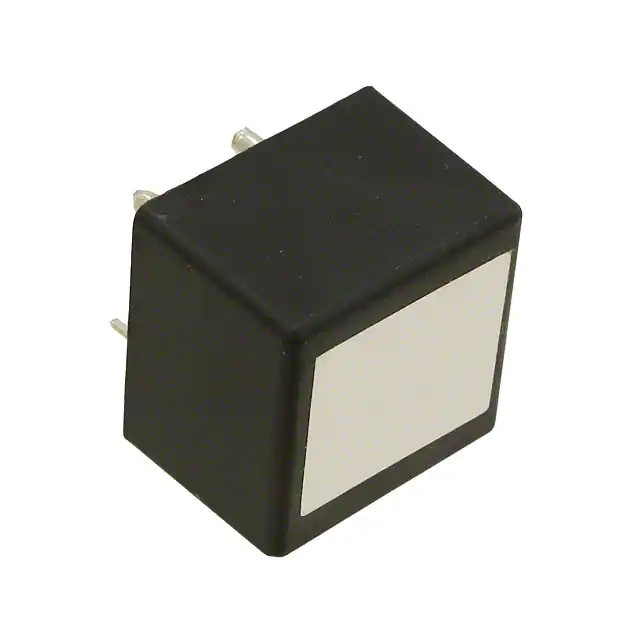

CSE187L-P-B CURR SENSE XFMR 1:500 30A T/H Triad Magnetics	7,258	3.12	- + RFQ	Datasheet	Bulk	CSE	Active	50Hz ~ 400Hz	Invasive	30 A	-	-	1:500	-	3mOhm Primary, 21Ohm Secondary	-	Through Hole	0.875 L x 0.875 W (22.23mm x 22.23mm)	0.720 (18.29mm)

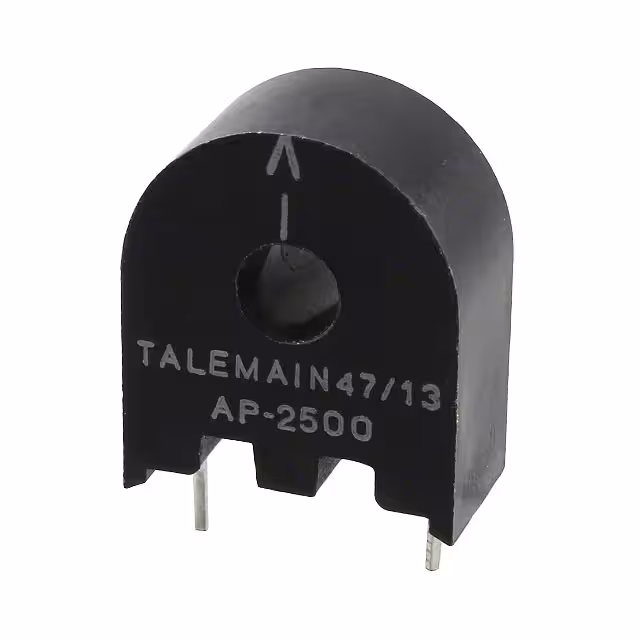

AP-2500 CURR SENSE XFMR 15A T/H Talema Group LLC	5,584	3.16	- + RFQ	Datasheet	Tray	AP	Active	-	Non-Invasive (Solid Core)	15 A	-	-	-	2500:1	330Ohm Max	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-405 XFRMR CURR 50A 1:500 VRT Amgis, LLC	6,149	3.21	- + RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.984 (25.00mm)

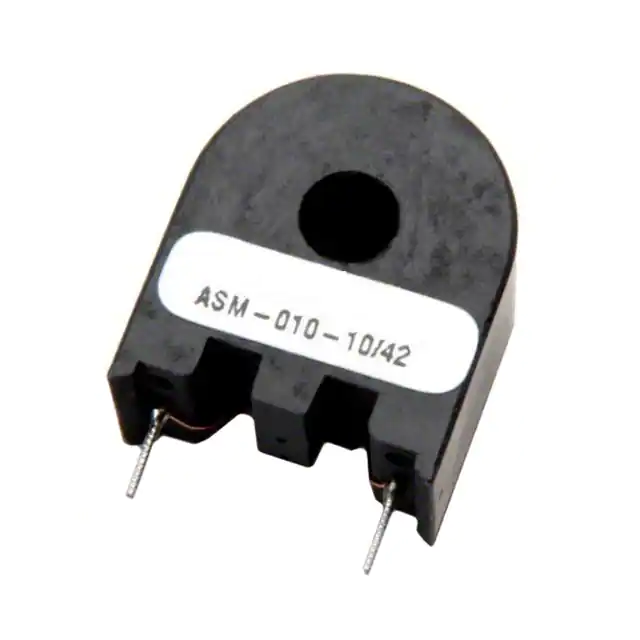

ASM-010 CURR SENSE XFMR 10A T/H Amgis, LLC	8,991	3.36	- + RFQ	Datasheet	Tray	ASM	Active	50/60Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Through Hole	0.677 L x 0.375 W (17.20mm x 9.53mm)	0.803 (20.40mm)
AS-200 XFRMR CURR 15A 1:50 VRT Amgis, LLC	6,508	3.41	- + RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.571 L x 0.772 W (14.50mm x 19.60mm)	0.709 (18.00mm)
AS-201 XFRMR CURR 15A 1:100 VRT Amgis, LLC	5,570	3.44	- + RFQ	Datasheet	Bulk	AS	Active	-	-	-	-	-	-	-	-	-	-	0.571 L x 0.772 W (14.50mm x 19.60mm)	0.709 (18.00mm)
