Results:

Производитель. Часть #	Доступность	Цены	Количество	Таблицы данных	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

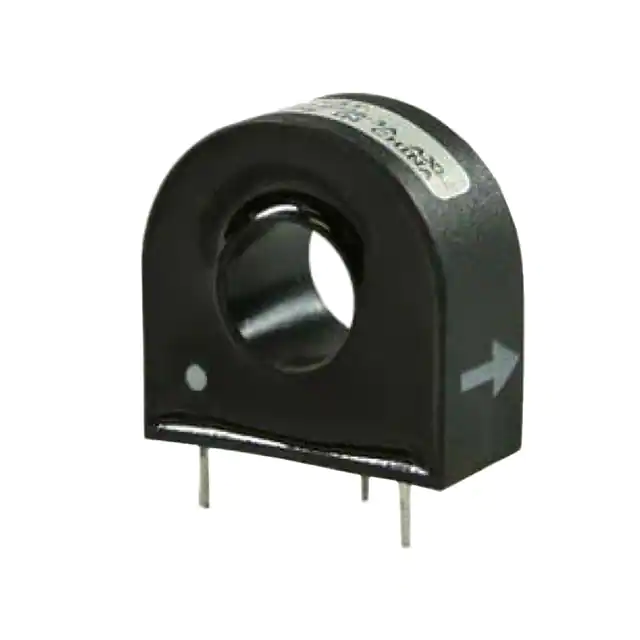

CST-1020-B CURR SENSE XFMR 20A T/H Triad Magnetics	7,554	7.37	- + RFQ	Datasheet	Tray	CST	Active	50/60Hz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	40Ohm	-	Through Hole	0.925 L x 0.472 W (23.50mm x 12.00mm)	0.976 (24.80mm)

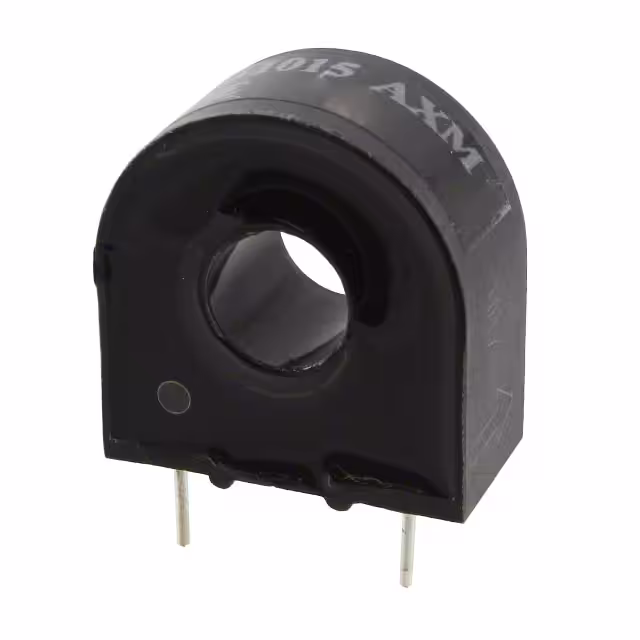

CST-1015 CURR SENSE XFMR 15A T/H Triad Magnetics	9,928	7.30	- + RFQ	Datasheet	Bulk	CST	Active	50/60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	1000:1	40Ohm	-	Through Hole	0.925 L x 0.472 W (23.50mm x 12.00mm)	0.976 (24.80mm)
CT-1060 CURR SENSE XFMR 60A T/H Amgis, LLC	6,979	7.41	- + RFQ	Datasheet	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	60 A	-	-	-	1000:1	24Ohm	-	Through Hole	1.500 L x 0.626 W (38.10mm x 15.90mm)	1.500 (38.10mm)
CT-1075 CURR SENSE XFMR 75A T/H Amgis, LLC	5,109	7.41	- + RFQ	Datasheet	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	75 A	-	-	-	1000:1	24Ohm	-	Through Hole	1.500 L x 0.626 W (38.10mm x 15.90mm)	1.500 (38.10mm)
CST206-2T CURR SENSE XFMR 80A T/H Triad Magnetics	9,608	7.48	- + RFQ	Datasheet	Bulk	CST	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	80 A	56 mH	4000VµS	-	200:1	3.5Ohm Max	-	Through Hole	1.075 L x 0.400 W (27.31mm x 10.16mm)	1.225 (31.12mm)
2277093 CURR SENSE XFMR 1:80 400A DIN RL Phoenix Contact	1,390	39.16	- + RFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	400 A	-	-	-	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
2277624 CURR SENSE XFMR 125A DIN RAIL Phoenix Contact	1,073	39.16	- + RFQ	Datasheet	Bulk	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	125 A	-	-	-	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
2277857 CURR SENSE XFMR 200A DIN RAIL Phoenix Contact	4,195	39.16	- + RFQ	Datasheet	Bulk	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	200 A	-	-	-	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
CR5ASFT-101 CURR SENSE XFMR 100A CHAS MNT CR Magnetics Inc.	4,759	43.01	- + RFQ	Datasheet	Bulk	CR5A	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	100 A	-	-	-	100:5	-	-	Chassis Mount	-	-
CR5ARL-301 CURR SENSE XFMR 300A IN-LINE CR Magnetics Inc.	2,211	43.01	- + RFQ	Datasheet	Bulk	CR5A	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	300 A	-	-	-	300:5	-	-	Free Hanging (In-Line)	3.560 Dia (90.40mm)	1.098 (27.90mm)
CT-0150-F10 CURR SENSE XFMR 150:5 FOOTED Littelfuse Inc.	3,778	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	150 A	-	-	-	150:5	-	-	-	-	-
CT-0200-F10 CURR SENSE XFMR 200:5 FOOTED Littelfuse Inc.	3,256	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	200 A	-	-	-	200:5	-	-	-	-	-
CT-0300-D10 CURR SENSE XFMR 300:5 DONUT Littelfuse Inc.	3,949	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	300 A	-	-	-	300:5	-	-	Free Hanging (In-Line)	-	-
CT-0300-F10 CURR SENSE XFMR 300:5 FOOTED Littelfuse Inc.	4,978	62.37	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	300 A	-	-	-	300:5	-	-	-	-	-
2277174 CURR SENSE XFMR 1:120 600A DIN Phoenix Contact	4,041	62.88	- + RFQ		Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	600 A	-	-	1:120	-	-	-	DIN Rail	3.346 L x 1.181 W (85.00mm x 30.00mm)	4.252 (108.00mm)
855-3001/150-003 SPLIT-CORE CURRENT TRANSFORMER; WAGO Corporation	422	267.61	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	150 A	-	-	-	-	-	-	Chassis Mount	1.890 L x 1.417 W (48.00mm x 36.00mm)	1.984 (50.40mm)
855-3001/075-003 SPLIT-CORE CURRENT TRANSFORMER; WAGO Corporation	770	267.61	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	75 A	-	-	-	-	-	-	Chassis Mount	1.890 L x 1.417 W (48.00mm x 36.00mm)	1.984 (50.40mm)
855-3001/125-003 SPLIT-CORE CURRENT TRANSFORMER; WAGO Corporation	883	267.61	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	125 A	-	-	-	-	-	-	Chassis Mount	1.890 L x 1.417 W (48.00mm x 36.00mm)	1.984 (50.40mm)
855-3001/100-003 SC-CT PRC 100A SRC 1A WAGO Corporation	405	268.09	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	100 A	-	-	-	-	-	-	Chassis Mount	1.890 L x 1.417 W (48.00mm x 36.00mm)	1.984 (50.40mm)
855-3001/200-001 SC-CT PRC 200A SRC 1A WAGO Corporation	476	268.09	- + RFQ	Datasheet	Box	-	Active	50Hz ~ 60Hz	Non-Invasive (Split Core)	200 A	-	-	-	-	-	-	Chassis Mount	1.890 L x 1.417 W (48.00mm x 36.00mm)	1.984 (50.40mm)
