| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
RCWE0805R330FKEARES 0.33 OHM 1% 1/4W 0805 |
13,028 | 0.56 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCWE | Active | 330 mOhms | ±1% | 0.25W, 1/4W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.051 W (2.00mm x 1.30mm) | 0.026 (0.65mm) | |
|
|
RCWE0603R560FKEARES 0.56 OHM 1% 1/5W 0603 |
11,768 | 0.56 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCWE | Active | 560 mOhms | ±1% | 0.2W, 1/5W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.024 (0.60mm) | |
|
|
RCWE0603R200FKEARES 0.2 OHM 1% 1/5W 0603 |
14,757 | 0.56 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RCWE | Active | 200 mOhms | ±1% | 0.2W, 1/5W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.033 W (1.60mm x 0.85mm) | 0.024 (0.60mm) | |
|

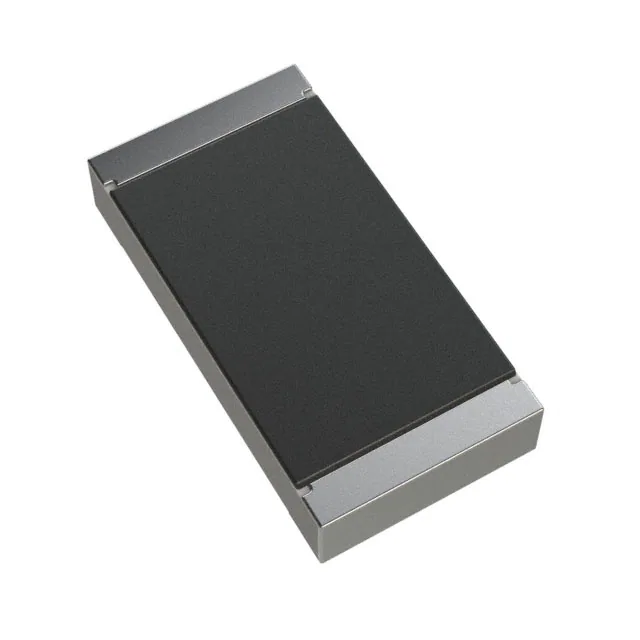

PCS1206DR0100ET1W 0.010 OHMS 0.5% 1206 |
13,481 | 0.84 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PCS | Active | 10 mOhms | ±0.5% | 1W | Metal Film | Current Sense | ±50ppm/°C | -55°C ~ 170°C | - | 0.126 L x 0.065 W (3.20mm x 1.65mm) | 0.027 (0.68mm) | |
|
CRM1206AFX-R100ELFRES 0.1 OHM 1% 1/2W 1206 |
13,136 | 0.76 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | CRM-A | Active | 100 mOhms | ±1% | 0.5W, 1/2W | Thick Film | Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.063 W (3.10mm x 1.60mm) | 0.026 (0.65mm) | |
|
RNCF0805BKT10K0RES 10K OHM 0.1% 1/8W 0805 |
10,237 | 0.72 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RNCF | Active | 10 kOhms | ±0.1% | 0.125W, 1/8W | Thin Film | Automotive AEC-Q200 | ±10ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.026 (0.65mm) | |
|
RL1632T4F-R005-FNHRES 0.005 OHM 1% 1W WIDE 1206 |
11,779 | 0.55 |
RFQ |
Datasheet |
Wide 1206 (3216 Metric), 0612 | Tape & Reel (TR),Cut Tape (CT) | RL1632T4F | Active | 5 mOhms | ±1% | 1W | Metal Film | Current Sense | ±100ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.031 (0.80mm) | |
|
RLM-1632W-6F-R002-FNHRES 0.002 OHM 1% 1W 1206 |
13,183 | 0.55 |
RFQ |
Datasheet |
Wide 1206 (3216 Metric), 0612 | Tape & Reel (TR),Cut Tape (CT) | RLM-1632W | Active | 2 mOhms | ±1% | 1W | - | - | ±150ppm/°C | -55°C ~ 170°C | - | 0.063 L x 0.126 W (1.60mm x 3.20mm) | 0.028 (0.70mm) | |
|
RLM-1632-6F-R002-FNHRES 0.002 OHM 1% 1W 1206 |
10,577 | 0.55 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RLM-1632 | Active | 2 mOhms | ±1% | 1W | - | Current Sense | ±100ppm/°C | -55°C ~ 170°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.031 (0.80mm) | |
|
|
RLM-1632-6F-R001-FNHRES 0.001 OHM 1% 1W 1206 |
13,337 | 0.55 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RLM-1632 | Active | 1 mOhms | ±1% | 1W | - | Current Sense | ±100ppm/°C | -55°C ~ 170°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.031 (0.80mm) | |
|
|
RL1632T4F-R003-FNHRES 0.003 OHM 1% 1W WIDE 1206 |
14,956 | 0.55 |
RFQ |
Datasheet |
Wide 1206 (3216 Metric), 0612 | Tape & Reel (TR),Cut Tape (CT) | RL1632T4F | Active | 3 mOhms | ±1% | 1W | Metal Film | Current Sense | ±100ppm/°C | -55°C ~ 150°C | - | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.031 (0.80mm) | |
|
PMR10EZPJV2L0RES 0.002 OHM 5% 1/2W 0805 |
14,767 | 0.57 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PMR | Active | 2 mOhms | ±5% | 0.5W, 1/2W | Metal Element | Automotive AEC-Q200, Current Sense | ±150ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.047 W (2.00mm x 1.20mm) | 0.019 (0.47mm) | |
|

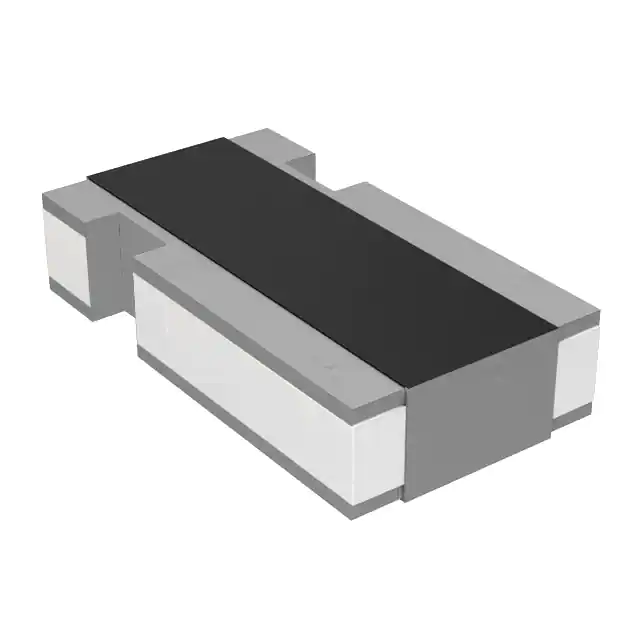

CSSK0612FT5L00RES 0.005 OHM 1% 1W 0612 |
13,970 | 0.84 |
RFQ |
Datasheet |
0612 (1632 Metric) | Tape & Reel (TR),Cut Tape (CT) | CSSK | Active | 5 mOhms | ±1% | 1W | Metal Element | Current Sense | ±150ppm/°C | -55°C ~ 170°C | - | 0.065 L x 0.120 W (1.65mm x 3.05mm) | 0.033 (0.85mm) | |
|
PCS2512FR0010ET2W 0.001 OHMS 1% 2512 |
10,548 | 0.84 |
RFQ |
Datasheet |
2512 (6432 Metric) | Tape & Reel (TR),Cut Tape (CT) | PCS | Active | 1 mOhms | ±1% | 2W | Metal Film | Current Sense | ±50ppm/°C | -55°C ~ 170°C | - | 0.250 L x 0.120 W (6.35mm x 3.05mm) | 0.026 (0.66mm) | |
|
RP73D1J1K0BTDRES SMD 1K OHM 0.1% 1/10W 0603 |
10,829 | 0.58 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RP73, Holsworthy | Active | 1 kOhms | ±0.1% | 0.1W, 1/10W | Thin Film | - | ±15ppm/°C | -55°C ~ 155°C | - | 0.061 L x 0.031 W (1.55mm x 0.80mm) | 0.022 (0.55mm) | |
|
SMW212RJTRES SMD 12 OHM 5% 2W 2616 |
12,503 | 0.57 |
RFQ |
Datasheet |
2616 (6740 Metric), J-Lead | Tape & Reel (TR),Cut Tape (CT) | SMW, CGS | Active | 12 Ohms | ±5% | 2W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | 0.264 L x 0.157 W (6.70mm x 4.00mm) | 0.152 (3.85mm) | |
|
|
SMW227RJTRES SMD 27 OHM 5% 2W 2616 |
10,028 | 0.57 |
RFQ |
Datasheet |
2616 (6740 Metric), J-Lead | Tape & Reel (TR),Cut Tape (CT) | SMW, CGS | Active | 27 Ohms | ±5% | 2W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | 0.264 L x 0.157 W (6.70mm x 4.00mm) | 0.152 (3.85mm) | |
|
|
SMW28R2JTRES SMD 8.2 OHM 5% 2W 2616 |
12,633 | 0.57 |
RFQ |
Datasheet |
2616 (6740 Metric), J-Lead | Tape & Reel (TR),Cut Tape (CT) | SMW, CGS | Active | 8.2 Ohms | ±5% | 2W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | 0.264 L x 0.157 W (6.70mm x 4.00mm) | 0.152 (3.85mm) | |
|
RG1608N-244-W-T1RES SMD 240KOHM 0.05% 1/10W 0603 |
13,080 | 0.84 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | RG | Active | 240 kOhms | ±0.05% | 0.1W, 1/10W | Thin Film | Anti-Sulfur, Automotive AEC-Q200 | ±10ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.020 (0.50mm) | |
|
|
SMW23R3JTRES SMD 3.3 OHM 5% 2W 2616 |
12,500 | 0.57 |
RFQ |
Datasheet |
2616 (6740 Metric), J-Lead | Tape & Reel (TR),Cut Tape (CT) | SMW, CGS | Active | 3.3 Ohms | ±5% | 2W | Wirewound | Flame Retardant Coating, Safety | ±200ppm/°C | -55°C ~ 200°C | - | 0.264 L x 0.157 W (6.70mm x 4.00mm) | 0.152 (3.85mm) |
