| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
HV732ATTD306JRES 30M OHM 5% 1/4W 0805 |
10,066 | 0.50 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HV73 | Active | 30 MOhms | ±5% | 0.25W, 1/4W | Thick Film | High Voltage, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
.jpg)
|

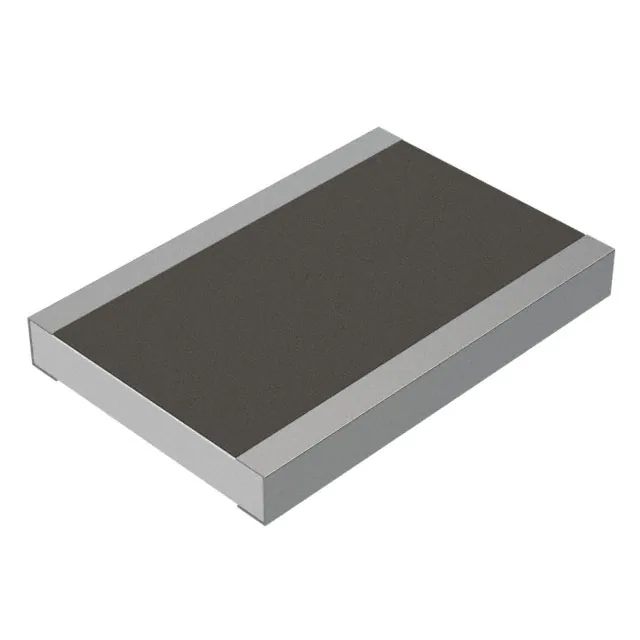

WK73R2JTTE821JRES 820 OHM 5% 1W 1812 |
13,580 | 0.45 |
RFQ |
Datasheet |
Wide 1812 (4532 Metric), 1218 | Tape & Reel (TR),Cut Tape (CT) | WK73R | Active | 820 Ohms | ±5% | 1W | Thick Film | Automotive AEC-Q200, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.181 W (3.10mm x 4.60mm) | 0.028 (0.70mm) | |
|
|
WK73R2JTTE181JRES 180 OHM 5% 1W 1812 |
12,705 | 0.45 |
RFQ |
Datasheet |
Wide 1812 (4532 Metric), 1218 | Tape & Reel (TR),Cut Tape (CT) | WK73R | Active | 180 Ohms | ±5% | 1W | Thick Film | Automotive AEC-Q200, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.181 W (3.10mm x 4.60mm) | 0.028 (0.70mm) | |
|
ERJ-6RSJR12VRES 0.12 OHM 5% 1/8W 0805 |
12,783 | 0.52 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ERJ-6R | Active | 120 mOhms | ±5% | 0.125W, 1/8W | Thick Film | Automotive AEC-Q200, Current Sense | ±250ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.028 (0.70mm) | |
|
PWR163S-25-4R70JRES SMD 4.7 OHM 5% 25W DPAK |
6,624 | 3.99 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | PWR163 | Active | 4.7 Ohms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.320 L x 0.324 W (8.13mm x 8.22mm) | 0.125 (3.17mm) | |
.jpg)
|
CRM2010-JW-3R3ELFRES SMD 3.3 OHM 5% 1W 2010 |
10,802 | 0.46 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | CRM2010 | Active | 3.3 Ohms | ±5% | 1W | Thick Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.028 (0.70mm) | |
.jpg)
|
RL1210FR-070R82LRES 0.82 OHM 1% 1/2W 1210 |
10,661 | 0.54 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 820 mOhms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.102 W (3.10mm x 2.60mm) | 0.026 (0.65mm) | |
|
|
RL1210FR-070R51LRES 0.51 OHM 1% 1/2W 1210 |
10,899 | 0.54 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 510 mOhms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.102 W (3.10mm x 2.60mm) | 0.026 (0.65mm) | |
|
|
RL1210FR-070R36LRES 0.36 OHM 1% 1/2W 1210 |
12,511 | 0.54 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 360 mOhms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±600ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.102 W (3.10mm x 2.60mm) | 0.026 (0.65mm) | |
|
HVCB0805BDC10M0RES HV 0805 10 MOHM 0.1% 50PPM |
9,083 | 7.12 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 10 MOhms | ±0.1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
|
HVCB0805BDC20M0RES HV 0805 20 MOHM 0.1% 50PPM |
5,546 | 7.12 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | HVC | Active | 20 MOhms | ±0.1% | 0.2W, 1/5W | Thick Film | High Voltage, Moisture Resistant, Pulse Withstanding | ±50ppm/°C | -55°C ~ 150°C | - | 0.079 L x 0.050 W (2.01mm x 1.27mm) | 0.025 (0.64mm) | |
|
PWR263S-20-20R0FRES SMD 20 OHM 1% 20W D2PAK |
5,482 | 4.02 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | PWR263S-20 | Active | 20 Ohms | ±1% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.398 L x 0.409 W (10.10mm x 10.40mm) | 0.192 (4.88mm) | |
|
|
PWR263S-20-1000FRES SMD 100 OHM 1% 20W D2PAK |
5,770 | 4.02 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | PWR263S-20 | Active | 100 Ohms | ±1% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.398 L x 0.409 W (10.10mm x 10.40mm) | 0.192 (4.88mm) | |
|
|
MP725-75.0-1%RES SMD 75 OHM 1% 25W DPAK |
7,404 | 7.00 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tape & Reel (TR),Cut Tape (CT) | MP725 | Active | 75 Ohms | ±1% | 25W | Thick Film | Current Sense, Moisture Resistant, Non-Inductive | -20/ +80ppm/°C | -55°C ~ 150°C | - | 0.325 L x 0.320 W (8.26mm x 8.13mm) | 0.120 (3.05mm) | |
|

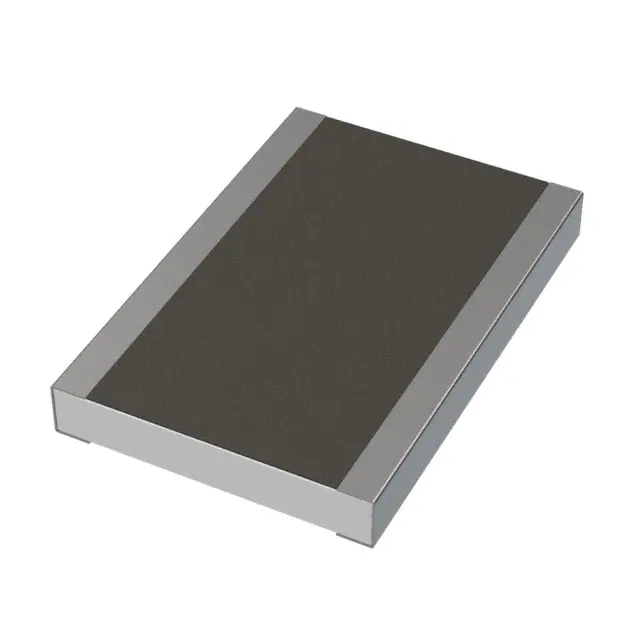

WK73S2JTTE4R70FRES 4.7 OHM 1% 1W 1218 |
14,860 | 0.50 |
RFQ |
Datasheet |
Wide 1812 (4532 Metric), 1218 | Tape & Reel (TR),Cut Tape (CT) | WK73S | Active | 4.7 Ohms | ±1% | 1W | Thick Film | Automotive AEC-Q200, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.181 W (3.10mm x 4.60mm) | 0.028 (0.70mm) | |
|
RL1206JR-070R01LRES 0.01 OHM 5% 1/4W 1206 |
11,769 | 0.55 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | RL | Active | 10 mOhms | ±5% | 0.25W, 1/4W | Thick Film | Automotive AEC-Q200, Current Sense, Moisture Resistant | ±1500ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.122 L x 0.063 W (3.10mm x 1.60mm) | 0.026 (0.65mm) | |
|
ERJ-12SF1270URES SMD 127 OHM 1% 3/4W 2010 |
14,264 | 0.56 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | ERJ-12S | Not For New Designs | 127 Ohms | ±1% | 0.75W, 3/4W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.028 (0.70mm) | |
|
|
ERJ-12SF5361URES SMD 5.36K OHM 1% 3/4W 2010 |
11,012 | 0.56 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | ERJ-12S | Not For New Designs | 5.36 kOhms | ±1% | 0.75W, 3/4W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.028 (0.70mm) | |
|
|
ERJ-12SF10R5URES SMD 10.5 OHM 1% 3/4W 2010 |
12,270 | 0.56 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | ERJ-12S | Not For New Designs | 10.5 Ohms | ±1% | 0.75W, 3/4W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.028 (0.70mm) | |
|
|
ERJ-12SF1102URES SMD 11K OHM 1% 3/4W 2010 |
13,315 | 0.56 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR),Cut Tape (CT) | ERJ-12S | Not For New Designs | 11 kOhms | ±1% | 0.75W, 3/4W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.197 L x 0.098 W (5.00mm x 2.50mm) | 0.028 (0.70mm) |
