| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
CRL0805-JW-R100ELFRES 0.1 OHM 5% 1/8W 0805 |
10,025 | 0.24 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CRL | Active | 100 mOhms | ±5% | 0.125W, 1/8W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
|
CRL0805-JW-R330ELFRES 0.33 OHM 5% 1/8W 0805 |
14,261 | 0.24 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CRL | Active | 330 mOhms | ±5% | 0.125W, 1/8W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
ERJ-14NF2152URES SMD 21.5K OHM 1% 1/2W 1210 |
11,231 | 0.45 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ERJ-14N | Not For New Designs | 21.5 kOhms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.028 (0.70mm) | |
|
RT0402DRD0756KLRES SMD 56K OHM 0.5% 1/16W 0402 |
13,371 | 0.28 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | RT | Active | 56 kOhms | ±0.5% | 0.063W, 1/16W | Thin Film | - | ±25ppm/°C | -55°C ~ 155°C | - | 0.039 L x 0.020 W (1.00mm x 0.50mm) | 0.014 (0.35mm) | |
|
ERJ-P03J2R2VRES SMD 2.2 OHM 5% 1/5W 0603 |
13,165 | 0.26 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | ERJ-P03 | Active | 2.2 Ohms | ±5% | 0.2W, 1/5W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | -150/ +400ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
ERJ-P03J510VRES SMD 51 OHM 5% 1/5W 0603 |
10,713 | 0.26 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | ERJ-P03 | Active | 51 Ohms | ±5% | 0.2W, 1/5W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
|
RPC0805JT1R00-UPRES, PULSE, 0805, 5%, 1 OHM, 0.5 |
14,071 | 0.25 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 1 Ohms | ±5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
.jpg)
|

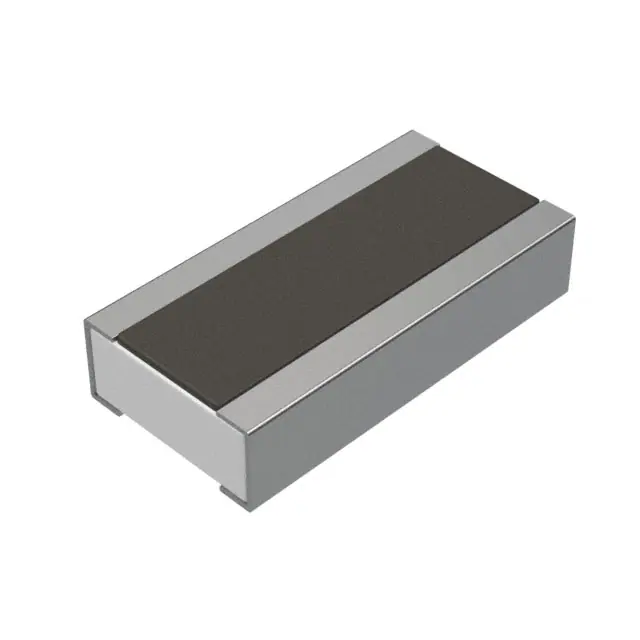

WK73R1JTTD10R0FRES 10 OHM 1% 1/2W 0603 |
13,217 | 0.26 |
RFQ |
Datasheet |
Wide 0603 (1608 Metric), 0306 | Tape & Reel (TR),Cut Tape (CT) | WK73R | Active | 10 Ohms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0.022 (0.55mm) | |
|
|
RPC0805JT3R30-UPRES, PULSE, 0805, 5%, 3.3 OHM, 0 |
13,870 | 0.25 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | RPC | Active | 3.3 Ohms | ±5% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.024 (0.60mm) | |
|
|
ERJ-14NF8060URES SMD 806 OHM 1% 1/2W 1210 |
14,701 | 0.45 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ERJ-14N | Not For New Designs | 806 Ohms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200 | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.028 (0.70mm) | |
|
FCSL150R005FERRES 0.005 OHM 10W 2959 WIDE |
7,319 | 5.72 |
RFQ |
Datasheet |
Wide 5929 (15075 Metric), 2959 | Tape & Reel (TR),Cut Tape (CT) | FCSL | Active | 5 mOhms | ±1% | 10W | Metal Foil | Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 0.295 L x 0.591 W (7.50mm x 15.00mm) | 0.028 (0.70mm) | |
|
PWR263S-35-2000FRES SMD 200 OHM 1% 35W D2PAK |
5,893 | 3.02 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | PWR263S-35 | Active | 200 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.398 L x 0.409 W (10.10mm x 10.40mm) | 0.177 (4.50mm) | |
|
PWR263S-20-4R70JRES SMD 4.7 OHM 5% 20W D2PAK |
7,510 | 3.02 |
RFQ |
Datasheet |
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Tube | PWR263S-20 | Active | 4.7 Ohms | ±5% | 20W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.398 L x 0.409 W (10.10mm x 10.40mm) | 0.192 (4.88mm) | |
.jpg)
|
RK73H2ETTD5R11FRES 5.11 OHM 1% 1/2W 1210 |
11,895 | 0.28 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | RK73H | Active | 5.11 Ohms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.102 W (3.20mm x 2.60mm) | 0.028 (0.70mm) | |
|
|
RK73H2ETTD3R83FRES 3.83 OHM 1% 1/2W 1210 |
10,372 | 0.28 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | RK73H | Active | 3.83 Ohms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.102 W (3.20mm x 2.60mm) | 0.028 (0.70mm) | |
|
|
RK73H2ETTD7R50FRES 7.5 OHM 1% 1/2W 1210 |
11,177 | 0.28 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | RK73H | Active | 7.5 Ohms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.102 W (3.20mm x 2.60mm) | 0.028 (0.70mm) | |
|
|
RK73H2ETTD3R01FRES 3.01 OHM 1% 1/2W 1210 |
14,770 | 0.28 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | RK73H | Active | 3.01 Ohms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.102 W (3.20mm x 2.60mm) | 0.028 (0.70mm) | |
|
|
RK73H2ETTD4R75FRES 4.75 OHM 1% 1/2W 1210 |
10,319 | 0.28 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | RK73H | Active | 4.75 Ohms | ±1% | 0.5W, 1/2W | Thick Film | Automotive AEC-Q200, Moisture Resistant | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.102 W (3.20mm x 2.60mm) | 0.028 (0.70mm) | |
.jpg)
|
SG73S2BTTD15R0FRES 15 OHM 1% 1/3W 1206 |
12,284 | 0.28 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | SG73S | Active | 15 Ohms | ±1% | 0.333W, 1/3W | Thick Film | Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.028 (0.70mm) | |
|
|
SG73S2BTTD1001FRES 1K OHM 1% 1/3W 1206 |
10,463 | 0.28 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | SG73S | Active | 1 kOhms | ±1% | 0.333W, 1/3W | Thick Film | Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.028 (0.70mm) |
