| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | FrequencyRange | Impedance-Unbalanced/Balanced | PhaseDifference | InsertionLoss(Max) | ReturnLoss(Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADT1-1+1:1 CORE & WIRE TRANSFORMER, 0.1 |
5,897 | 6.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 150kHz ~ 400MHz | 50 / 50Ohm | 5° | 3dB | 5.71dB |
|
|
ADT1-1WT-1+1:1 CORE & WIRE TRANSFORMER, 1 - |
7,381 | 6.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1MHz ~ 400MHz | 75 / 75Ohm | 5° | 1.0dB | 16dB |
|
ADT1-6T+1:1 CORE & WIRE TRANSFORMER, 0.0 |
9,214 | 7.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 30kHz ~ 125MHz | 50 / 50Ohm | 1° | 3dB | 7.66dB |
|

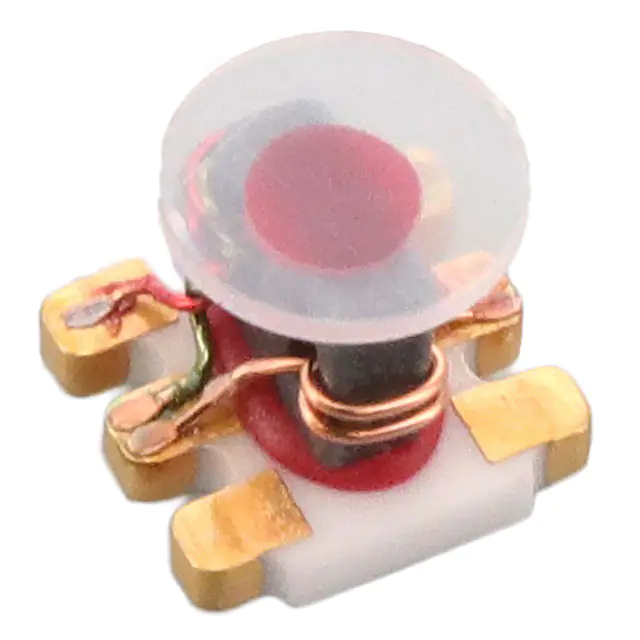

MABA-011082BALUN 5 - 8000 MHZ 1:1 |
8,928 | 7.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 5MHz ~ 8GHz | 1:1 | 17° | 2.6dB | 5dB |
|
TCM1-63AX+1:1 CORE & WIRE TRANSFORMER, 10 |
3,105 | 11.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 10MHz ~ 6GHz | 50 / 50Ohm | 8° | 2.5dB | 9.42dB |
|
|
TCM1-83X+1:1 CORE & WIRE TRANSFORMER, 10 |
1,144 | 14.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 10MHz ~ 8GHz | 50 / 50Ohm | 8° | 3dB | 10.56dB |
|
BAL-CC1101-01D3BALUN 779MHZ-928MHZ 50/50 4WFBGA |
14,643 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | 779MHz ~ 928MHz | 50 / 50Ohm | 10° | 1.9dB | -15dB |
|
DXW21HN5011BLBALUN 100MHZ-1GHZ 50/50 0805 |
7,000 | 1.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 100MHz ~ 1GHz | 50 / 50Ohm | - | 1.0dB | - |
|
TC4-1W+1:4 CORE & WIRE TRANSFORMER, 3 - |
8,214 | 3.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 3MHz ~ 800MHz | 1:4 | - | 3dB | 9.07dB |
|
TTC1-33W+1:1 CORE & WIRE TRANSFORMER, 4.5 |
5,072 | 3.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 4.5MHz ~ 3GHz | 50 / 50Ohm | 4° | 3.3dB | 8.4dB |
|
MABA-007569-ETK42TTRANSFORMER, RF 1:4, STEP-UP, 2- |
5,717 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2MHz ~ 1GHz | 1:4 | 20° | 4dB | - |
|
|
ETC1-1T-2TRBALUN 6SMD FLAT LEAD |
8,372 | 3.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 50 / -Ohm | 5° | 0.3dB | - |
|
MABA-011029BALUN 5MHZ-1.2GHZ 50/75 5SMD MOD |
9,706 | 4.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 5MHz ~ 1.2GHz | 50 / 75Ohm | - | 1.6dB | 12dB |
|
|
ADT2-71T+SMT RF TRANSFORMER 0.005 - 70 MH |
8,418 | 8.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 5kHz ~ 70MHz | 1:2 | 3° | 1.8dB | 9.12dB |
|
HHM1521BALUN 2.4GHZ-2.5GHZ 50/200 0805 |
14,429 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HHM | Active | 2.4GHz ~ 2.5GHz | 50 / 200Ohm | 180° ±10° | 1.0dB | 10dB |
|

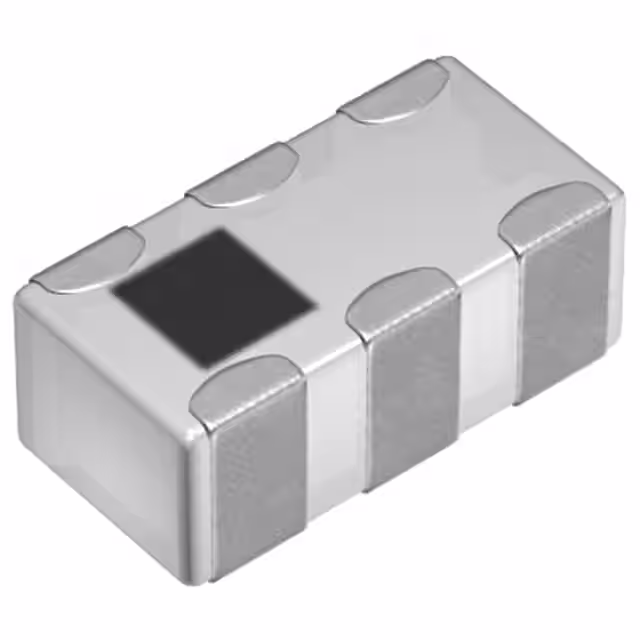

HHM1713E2MULTILAYER BALUN FOR 2400 - 2500 |
13,215 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HHM | Active | 2.4GHz ~ 2.5GHz | 50 / 200Ohm | 180° ±10° | 1.2dB | 10dB |
|
DXP2ABN7514TLBALUN 50MHZ-870MHZ 75/300 0804 |
12,789 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 50MHz ~ 870MHz | 75 / 300Ohm | - | 1.8dB | - |
|

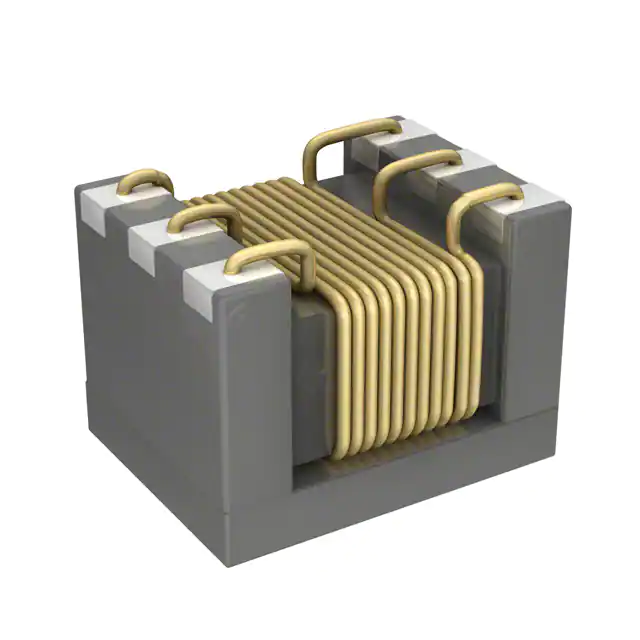

ATB3225-75034CTBALUN 1MHZ-100MHZ 3:4 1210 |
7,970 | 1.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ATB | Not For New Designs | 1MHz ~ 100MHz | 3:4 | 180° ±10° | 2.0dB | 5dB |
|

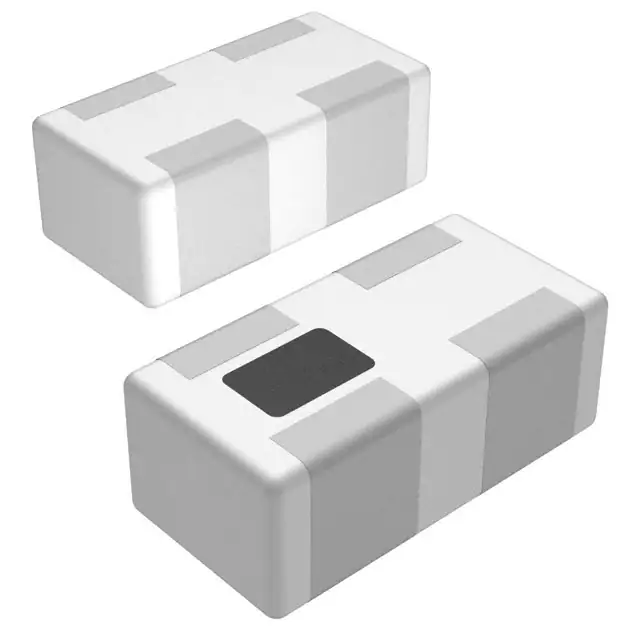

HHM1946A1BALUN 2.3GHZ-2.7GHZ 50/100 0402 |
14,303 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HHM | Active | 2.3GHz ~ 2.7GHz | 50 / 100Ohm | 190° | 0.5dB | -23dB |
|
HHM1711E1BALUN 2.3GHZ-2.7GHZ 50/100 0603 |
13,145 | 0.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HHM | Active | 2.3GHz ~ 2.7GHz | 50 / 100Ohm | 192° | 1.2dB | -10dB |
