| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPAG421ELL151MM40SCAP ALUM 150UF 20% 420V RADIAL |
9,446 | 4.46 |
RFQ |
Datasheet |
Bulk | PAG | Active | 150 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 1.185 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
UPV1H270MGDCAP ALUM 27UF 20% 50V RADIAL |
14,049 | 0.68 |
RFQ |
Datasheet |
Bulk | UPV | Not For New Designs | 27 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | 740 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
LKG1H102MESYCKCAP ALUM 1000UF 20% 50V SNAP |
6,336 | 4.67 |
RFQ |
Datasheet |
Bulk | LKG | Active | 1000 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.8 A @ 120 Hz | - | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UPA1V181MPDCAP ALUM 180UF 20% 35V RADIAL |
13,815 | 0.68 |
RFQ |
Datasheet |
Bulk | UPA | Active | 180 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 409.5 mA @ 120 Hz | - | 90 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UPM2A270MPD6CAP ALUM 27UF 20% 100V RADIAL |
11,928 | 0.68 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 27 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 205 mA @ 120 Hz | 380 mA @ 10 kHz | 500 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | - | Through Hole |
|
UCY2H390MHDCAP ALUM 39UF 20% 500V RADIAL |
8,343 | 4.77 |
RFQ |
Datasheet |
Bulk | UCY | Active | 39 µF | ±20% | 500 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 760 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
EKXG201ELL331MMP1SCAP ALUM 330UF 20% 200V RADIAL |
7,708 | 4.78 |
RFQ |
Datasheet |
Bulk | KXG | Active | 330 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.43 A @ 120 Hz | 3.2175 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.398 (35.50mm) | - | Through Hole |
|
63MXG3300MEFCSN22X35CAP ALUM 3300UF 20% 63V SNAP |
8,511 | 4.59 |
RFQ |
Datasheet |
Bulk | MXG | Active | 3300 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.33 A @ 120 Hz | 2.6795 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
UPJ1C152MHD6TNCAP ALUM 1500UF 20% 16V RADIAL |
9,430 | 1.31 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 1500 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.56 A @ 10 kHz | 66 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
LLS2E471MELACAP ALUM 470UF 20% 250V SNAP |
6,619 | 4.63 |
RFQ |
Datasheet |
Bulk | LLS | Active | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.225 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
ULD2G1R5MEDCAP ALUM 1.5UF 20% 400V RADIAL |
13,195 | 0.69 |
RFQ |
Datasheet |
Bulk | ULD | Not For New Designs | 1.5 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29 mA @ 120 Hz | 58 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UPW2D331MRDCAP ALUM 330UF 20% 200V RADIAL |
9,805 | 4.92 |
RFQ |
Datasheet |
Bulk | UPW | Not For New Designs | 330 µF | ±20% | 200 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.265 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

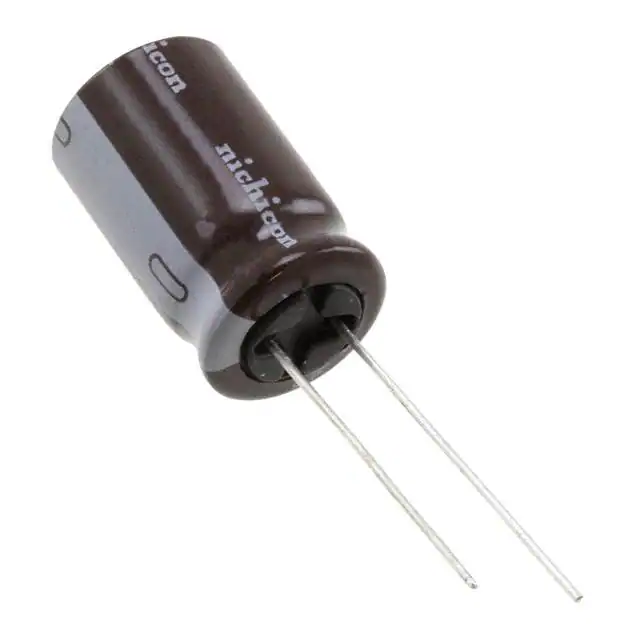

UCY2E560MHD1TOCAP ALUM 56UF 20% 250V RADIAL |
9,168 | 1.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UCY | Active | 56 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 515 mA @ 120 Hz | 1.03 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
EPAG401ELL151MM35SCAP ALUM 150UF 20% 400V RADIAL |
6,425 | 4.84 |
RFQ |
Datasheet |
Bulk | PAG | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.155 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
ECA-2GM4R7CAP ALUM 4.7UF 20% 400V RADIAL |
10,192 | 0.70 |
RFQ |
Datasheet |
Bulk | M-A | Active | 4.7 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 72 mA @ 120 Hz | 122.4 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
250LEX6.8MEFC8X11.5CAP ALUM 6.8UF 20% 250V RADIAL |
11,376 | 0.70 |
RFQ |
Datasheet |
Bulk | LEX | Active | 6.8 µF | ±20% | 250 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 68 mA @ 120 Hz | 129 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.531 (13.50mm) | - | Through Hole |
|

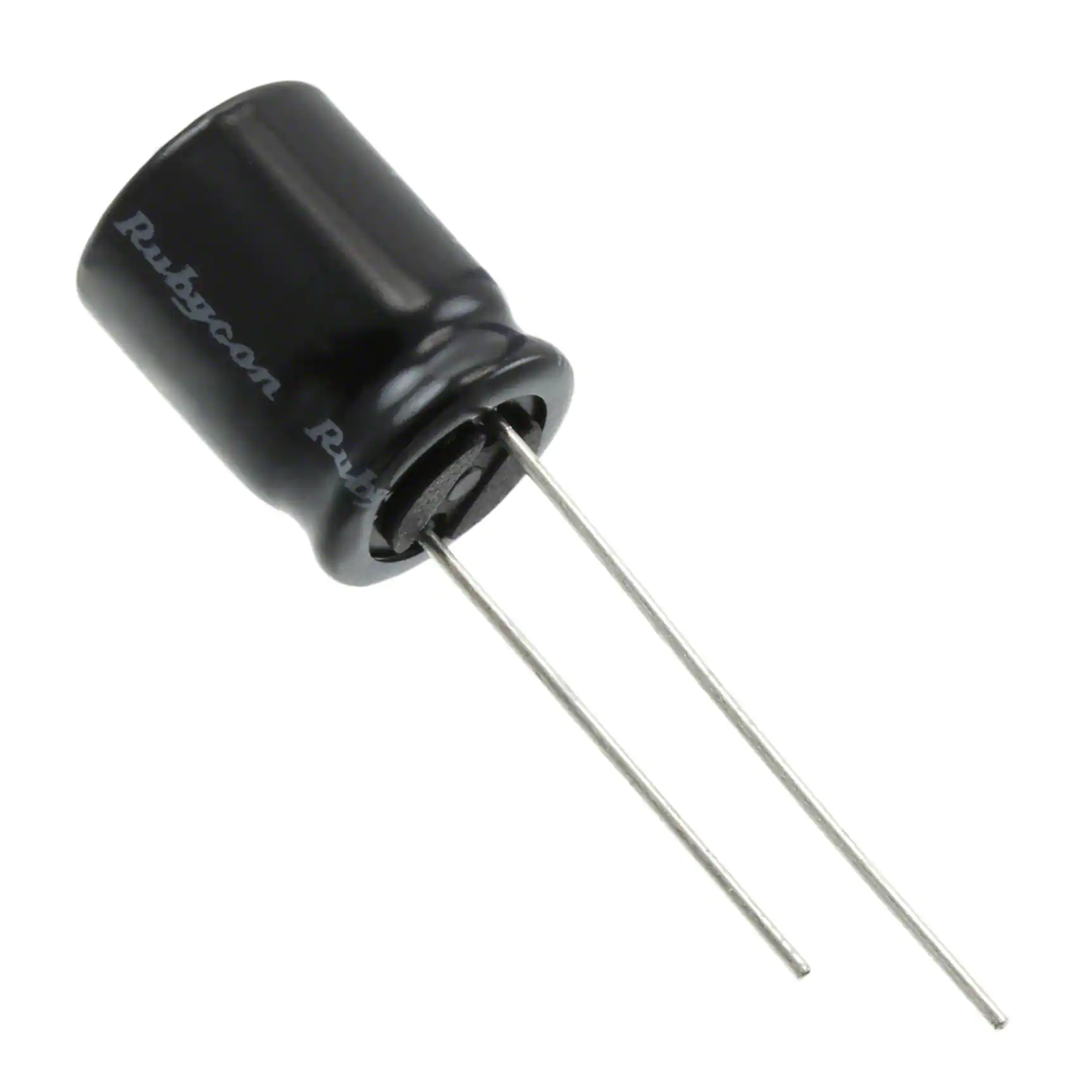

10ZLS1000MEFC10X12.5CAP ALUM 1000UF 20% 10V RADIAL |
11,304 | 0.70 |
RFQ |
Datasheet |
Bulk | ZLS | Active | 1000 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 744 mA @ 120 Hz | 1.24 A @ 100 kHz | 45 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
10ZLQ1200MEFC8X16CAP ALUM 1200UF 20% 10V RADIAL |
12,391 | 0.70 |
RFQ |
Datasheet |
Bulk | ZLQ | Active | 1200 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 834 mA @ 120 Hz | 1.39 A @ 100 kHz | 38 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
860240578010CAP ALUM 470UF 20% 35V RADIAL |
9,622 | 1.06 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-AT1H | Active | 470 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 1.1 A @ 100 kHz | - | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
LGU2E561MELBCAP ALUM 560UF 20% 250V SNAP |
8,837 | 5.13 |
RFQ |
Datasheet |
Bulk | LGU | Active | 560 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.378 (35.00mm) | - | Through Hole |
