| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

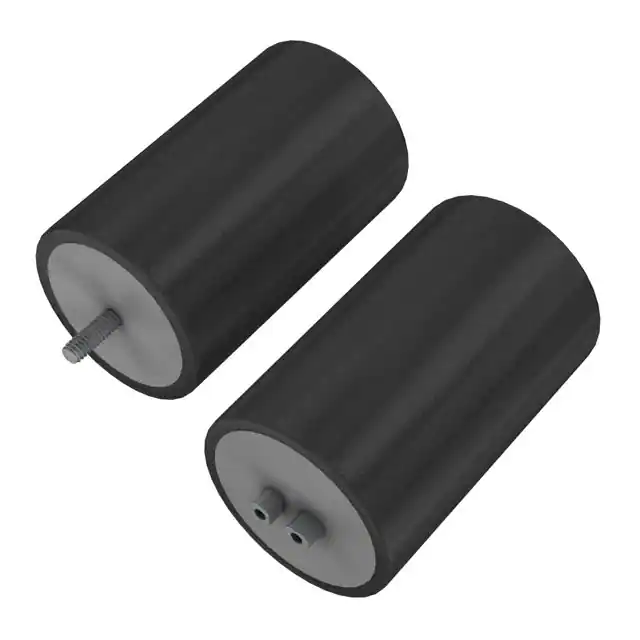

A451QM272M420AV00ACAP ALUM 2700UF 20% 420V SCREW |
355 | 108.27 |
RFQ |
Datasheet |
Bulk | PEH200 | Active | 2700 µF | ±20% | 420 V | 24mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.4 A @ 100 Hz | - | 12 mOhms | 1.122 (28.50mm) | 2.622 Dia (66.60mm) | 4.213 (107.00mm) | - | Chassis Mount |
|
DCM202T450CD2DCAP ALUM 2000UF 450V SCREW |
4,431 | 96.86 |
RFQ |
Datasheet |
Bulk | DCM | Active | 2000 µF | - | 450 V | - | - | - | - | - | General Purpose | - | - | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 4.687 (119.05mm) | - | Chassis Mount |
|
ALS70A163QS450CAP ALUM 16000UF 20% 450V SCREW |
350 | 154.49 |
RFQ |
Datasheet |
Bulk | ALS70 | Active | 16000 µF | ±20% | 450 V | 16mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.2 A @ 100 Hz | 36.2 A @ 10 kHz | 12 mOhms | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 7.717 (196.00mm) | - | Chassis Mount |
|
MLP102M200EB1ACAP ALUM 1000UF 20% 200V FLATPCK |
385 | 125.13 |
RFQ |
Datasheet |
Bulk | MLP | Active | 1000 µF | ±20% | 200 V | 158mOhm @ 120Hz | 2000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 5 A @ 20 kHz | - | 1.000 (25.40mm) | 3.000 L x 1.750 W (76.20mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
|
MLP562M063EB0ACAP ALUM 5600UF 20% 63V FLATPACK |
573 | 125.13 |
RFQ |
Datasheet |
Tray | MLP | Active | 5600 µF | ±20% | 63 V | 36mOhm | 2000 Hrs @ 85°C | -55°C ~ 85°C | - | - | General Purpose | - | - | - | 1.000 (25.40mm) | 3.000 L x 1.750 W (76.20mm x 44.45mm) | 0.500 (12.70mm) | - | Chassis Mount |
|
550C332T450DE2BCAP ALUM 3300UF 450V SCREW |
713 | 125.21 |
RFQ |
Datasheet |
Bulk | 550C | Active | 3300 µF | -10%, +50% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.2 A @ 120 Hz | 31.68 A @ 10 kHz | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
B43703A5688M000CAP ALUM 6800UF 20% 450V SCREW |
845 | 164.65 |
RFQ |
Datasheet |
Bulk | B43703 | Active | 6800 µF | ±20% | 450 V | 15mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.4 A @ 100 Hz | 3.63 A @ 100 kHz | 22 mOhms | 1.248 (31.70mm) | 3.027 Dia (76.90mm) | 5.185 (131.70mm) | - | Chassis Mount |
|
LNC2H103MSEJCAP ALUM 10000UF 20% 500V SCREW |
389 | 166.30 |
RFQ |
Datasheet |
Bulk | LNC | Active | 10000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 38.3 A @ 120 Hz | 53.62 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 8.189 (208.00mm) | - | Chassis Mount |
|
UVR1H470MED1TDCAP ALUM 47UF 20% 50V RADIAL |
11,767 | 0.35 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 310 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
UPW1H470MED1TDCAP ALUM 47UF 20% 50V RADIAL |
13,546 | 0.42 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 300 mA @ 100 kHz | 430 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
10SGV100M6.3X6.1CAP ALUM 100UF 20% 10V SMD |
12,428 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SGV | Active | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 71 mA @ 120 Hz | 85.2 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UPJ1V121MPD6TDCAP ALUM 120UF 20% 35V RADIAL |
11,503 | 0.50 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 120 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 555 mA @ 10 kHz | 240 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
UPJ1E221MPD6TDCAP ALUM 220UF 20% 25V RADIAL |
10,233 | 0.51 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 220 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 435 mA @ 120 Hz | - | 210 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
35ML220MEFCT810X9CAP ALUM 220UF 20% 35V RADIAL |
11,656 | 0.55 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ML | Active | 220 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 360 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | - | Through Hole |
|
UPM1C331MPD6TDCAP ALUM 330UF 20% 16V RADIAL |
12,583 | 0.57 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 330 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 670 mA @ 10 kHz | 120 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | - | Through Hole |
|
UVR1C102MPD1TDCAP ALUM 1000UF 20% 16V RADIAL |
12,947 | 0.60 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 790 mA @ 120 Hz | 908.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
UKL1V101MPD1TDCAP ALUM 100UF 20% 35V RADIAL |
11,985 | 0.71 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UKL | Not For New Designs | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 450 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
|
UVR1H4R7MDDCAP ALUM 4.7UF 20% 50V RADIAL |
11,085 | 0.25 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40 mA @ 120 Hz | 80 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
50PK4.7MEFC5X11CAP ALUM 4.7UF 20% 50V RADIAL |
14,470 | 0.26 |
RFQ |
Datasheet |
Bulk | PK | Active | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41 mA @ 120 Hz | 61.5 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
50ML10MEFC5X7CAP ALUM 10UF 20% 50V RADIAL |
14,096 | 0.26 |
RFQ |
Datasheet |
Bulk | ML | Active | 10 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
