| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

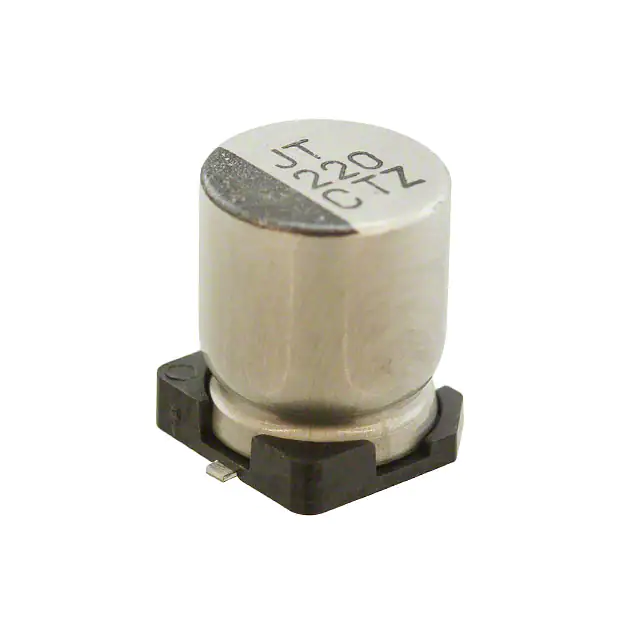

16TZV220M6.3X8CAP ALUM 220UF 20% 16V SMD |
13,105 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TZV | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 300 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
RFS-16V220MF3#5CAP ALUM 22UF 20% 16V RADIAL |
14,619 | 0.52 |
RFQ |
Datasheet |
Bulk | RFS, SILMIC II | Last Time Buy | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 70 mA @ 120 Hz | - | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.433 (11.00mm) | - | Through Hole |
|
UPJ0J821MPD1TDCAP ALUM 820UF 20% 6.3V RADIAL |
13,782 | 0.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 820 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 670 mA @ 120 Hz | 795 mA @ 10 kHz | 130 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
UPV1H100MFD1TDCAP ALUM 10UF 20% 50V RADIAL |
10,053 | 0.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPV | Not For New Designs | 10 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | 2 Ohms | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FM1E221BCAP ALUM 220UF 20% 25V RADIAL |
13,919 | 0.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FM-A | Active | 220 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 665 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

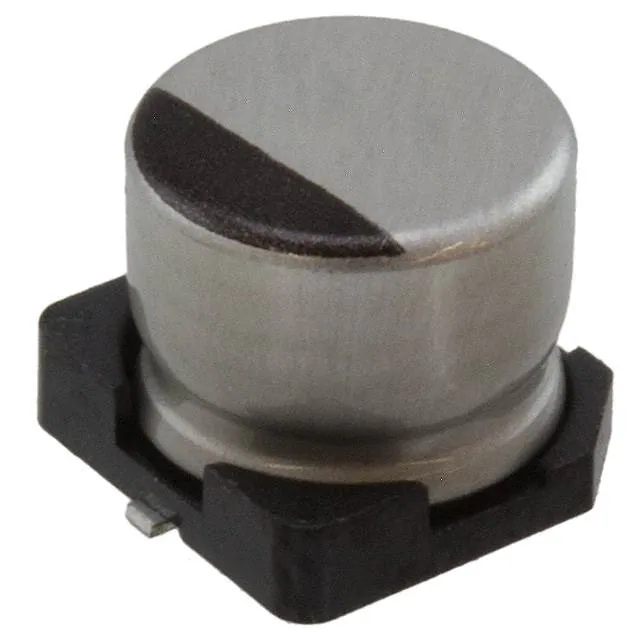

UWZ1E220MCL1GBCAP ALUM 22UF 20% 25V SMD |
14,436 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWZ | Active | 22 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | High Temperature Reflow | 38 mA @ 120 Hz | 57 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.224 (5.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

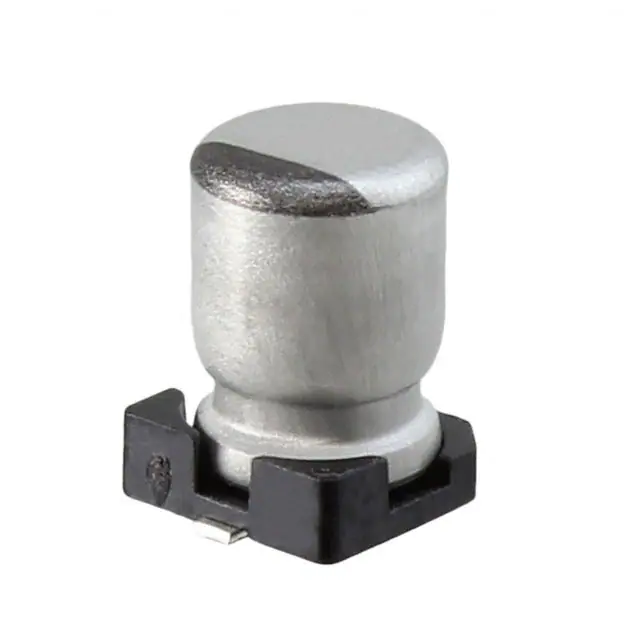

UWD0J270MCL1GSCAP ALUM 27UF 20% 6.3V SMD |
10,422 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 27 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 120 Hz | 80 mA @ 100 kHz | 1.8 Ohms | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEE-HB1C220ARCAP ALUM 22UF 20% 16V SMD |
13,805 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 39 mA @ 120 Hz | 66.3 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.228 (5.80mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
UPM2A3R3MDD1TDCAP ALUM 3.3UF 20% 100V RADIAL |
12,759 | 0.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 3.3 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 27 mA @ 120 Hz | 54 mA @ 10 kHz | 4.1 Ohms | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
UPM1K4R7MDD1TDCAP ALUM 4.7UF 20% 80V RADIAL |
12,380 | 0.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 4.7 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 26 mA @ 120 Hz | 53 mA @ 10 kHz | 4.2 Ohms | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
EEE-HB1H4R7ARCAP ALUM 4.7UF 20% 50V SMD |
13,623 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 23 mA @ 120 Hz | 39.1 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.228 (5.80mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|

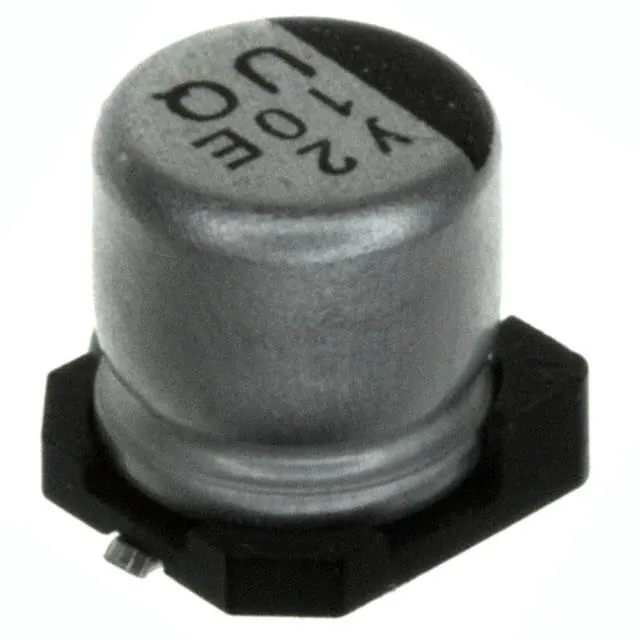

UUQ1C220MCL1GBCAP ALUM 22UF 20% 16V SMD |
10,975 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUQ | Active | 22 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
ECA-1EHG221BCAP ALUM 220UF 20% 25V RADIAL |
14,006 | 0.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 220 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 345 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
UCD1A470MCL1GSCAP ALUM 47UF 20% 10V SMD |
12,105 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCD | Not For New Designs | 47 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
UPM1J120MDD1TDCAP ALUM 12UF 20% 63V RADIAL |
13,509 | 0.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPM | Not For New Designs | 12 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 72 mA @ 120 Hz | 145 mA @ 10 kHz | 930 mOhms | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEE-HC1C470PCAP ALUM 47UF 20% 16V SMD |
11,230 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HC | Active | 47 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
UVK1E331MPD1TDCAP ALUM 330UF 20% 25V RADIAL |
10,625 | 0.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVK | Not For New Designs | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 585 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UPJ0J681MPD6TDCAP ALUM 680UF 20% 6.3V RADIAL |
14,436 | 0.52 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 680 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 580 mA @ 120 Hz | 700 mA @ 10 kHz | 180 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.650 (16.50mm) | - | Through Hole |
|

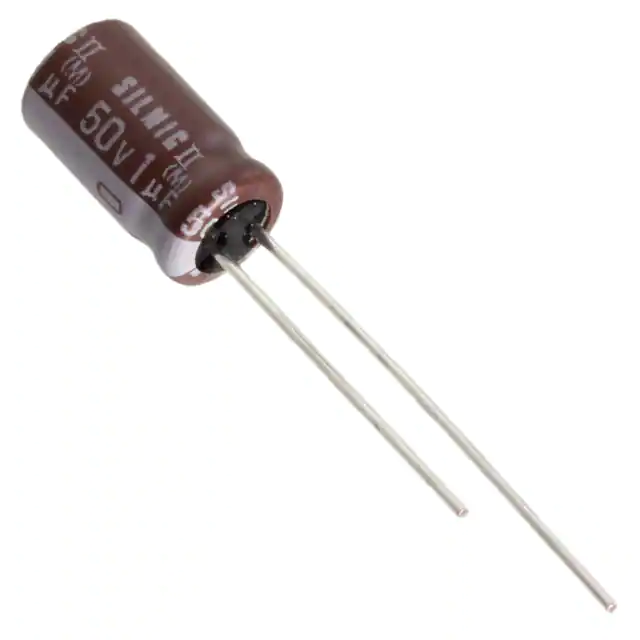

RFS-50V010MF3#5CAP ALUM 1UF 20% 50V RADIAL |
10,306 | 0.53 |
RFQ |
Datasheet |
Bulk | RFS, SILMIC II | Last Time Buy | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 18 mA @ 120 Hz | - | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.433 (11.00mm) | - | Through Hole |
|
515D225M100JA6AE3CAP ALUM 2.2UF 20% 100V RADIAL |
13,220 | 0.53 |
RFQ |
Datasheet |
Bulk | 515D | Last Time Buy | 2.2 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 60 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.433 (11.00mm) | - | Through Hole |
