| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELXS3B1VSN821MR50SCAP ALUM 820UF 20% 315V SNAP |
4,288 | 12.02 |
RFQ |
Datasheet |
Bulk | LXS | Active | 820 µF | ±20% | 315 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.51 A @ 120 Hz | 3.5893 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.067 (52.50mm) | - | Through Hole |
|
UHD1V102MHDCAP ALUM 1000UF 20% 35V RADIAL |
6,163 | 1.15 |
RFQ |
Datasheet |
Bulk | UHD | Not For New Designs | 1000 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.078 A @ 120 Hz | 2.77 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|
10ZLS3300MEFC12.5X20CAP ALUM 3300UF 20% 10V RADIAL |
8,956 | 1.16 |
RFQ |
Datasheet |
Bulk | ZLS | Active | 3300 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.736 A @ 120 Hz | 2.48 A @ 100 kHz | 17 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
UUE1H101MNS1MSCAP ALUM 100UF 20% 50V SMD |
6,291 | 1.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUE | Active | 100 µF | ±20% | 50 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 335 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.571 (14.50mm) | 0.535 L x 0.535 W (13.60mm x 13.60mm) | Surface Mount |
|

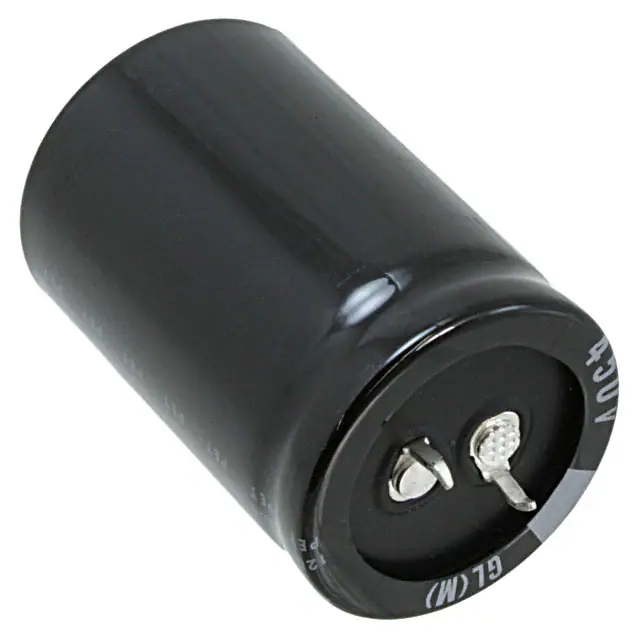

LGL2W471MELB45CAP ALUM 470UF 20% 450V SNAP |
1,960 | 12.38 |
RFQ |
Datasheet |
Bulk | LGL | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 2.1164 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
UPM1A102MHD6CAP ALUM 1000UF 20% 10V RADIAL |
9,586 | 1.17 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 1000 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.04 A @ 10 kHz | 65 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.669 (17.00mm) | - | Through Hole |
|
SEK330M100STCAP ALUM 33UF 20% 100V RADIAL |
9,057 | 1.18 |
RFQ |
Datasheet |
Bulk | SEK | Active | 33 µF | ±20% | 100 V | 4.02Ohm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
UBT1E471MPDCAP ALUM 470UF 20% 25V RADIAL |
6,529 | 1.18 |
RFQ |
Datasheet |
Bulk | UBT | Active | 470 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 550 mA @ 120 Hz | 1.1 A @ 100 kHz | 57 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ESK688M010AM2AACAP ALUM 6800UF 20% 10V RADIAL |
5,473 | 1.18 |
RFQ |
Datasheet |
Box | ESK | Active | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.28 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.339 (34.00mm) | - | Through Hole |
|
25TGV680M12.5X13.5CAP ALUM 680UF 20% 25V SMD |
7,781 | 2.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TGV | Active | 680 µF | ±20% | 25 V | 92mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 510 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|
B43642B5477M000CAP ALUM 470UF 20% 450V SNAP |
3,936 | 13.49 |
RFQ |
Datasheet |
Bulk | B43642 | Active | 470 µF | ±20% | 450 V | 180mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.34 A @ 100 Hz | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

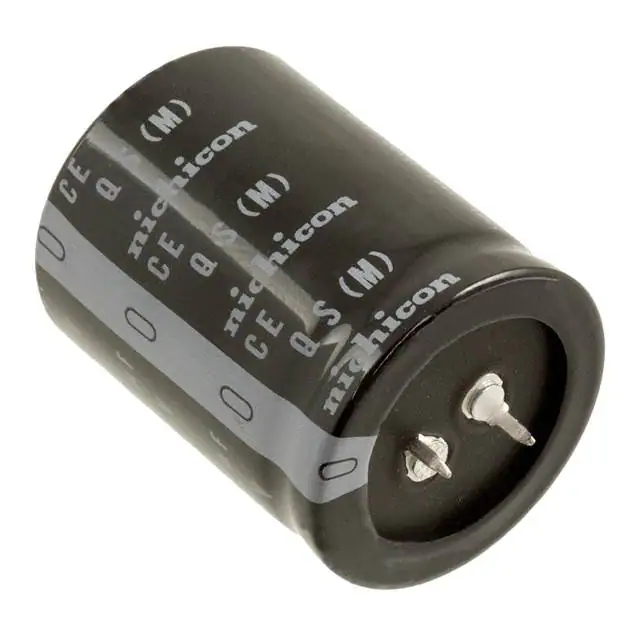

LQS2G681MELC45CAP ALUM 680UF 20% 400V SNAP |
4,800 | 13.07 |
RFQ |
Datasheet |
Bulk | LQS | Active | 680 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 2.431 A @ 50 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
UVP1H101MPDCAP ALUM 100UF 20% 50V RADIAL |
7,485 | 1.20 |
RFQ |
Datasheet |
Bulk | UVP | Not For New Designs | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 265 mA @ 120 Hz | 397.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

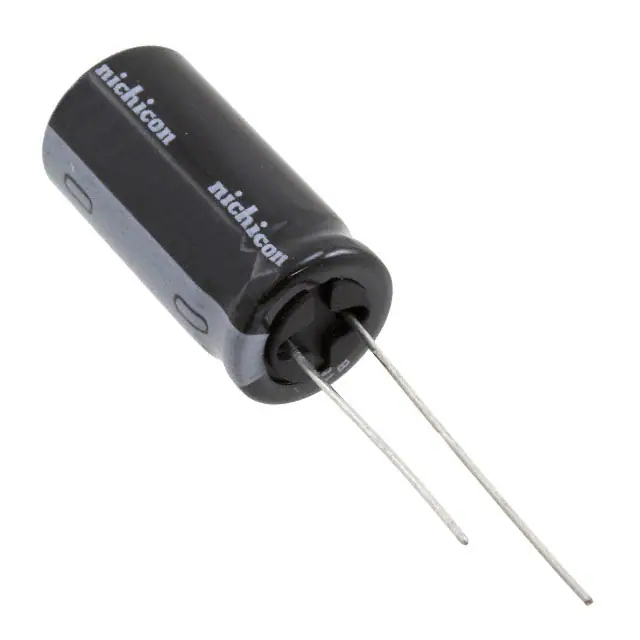

UHD1C222MHDCAP ALUM 2200UF 20% 16V RADIAL |
9,082 | 1.22 |
RFQ |
Datasheet |
Bulk | UHD | Not For New Designs | 2200 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.216 A @ 120 Hz | 2.77 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UCA2W100MHDCAP ALUM 10UF 20% 450V RADIAL |
7,956 | 1.23 |
RFQ |
Datasheet |
Bulk | UCA | Not For New Designs | 10 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 320 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.846 (21.50mm) | - | Through Hole |
|
|
35TGV560M12.5X16CAP ALUM 560UF 20% 35V SMD |
7,533 | 2.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TGV | Active | 560 µF | ±20% | 35 V | 74mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 600 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | 0.512 L x 0.512 W (13.00mm x 13.00mm) | Surface Mount |
|

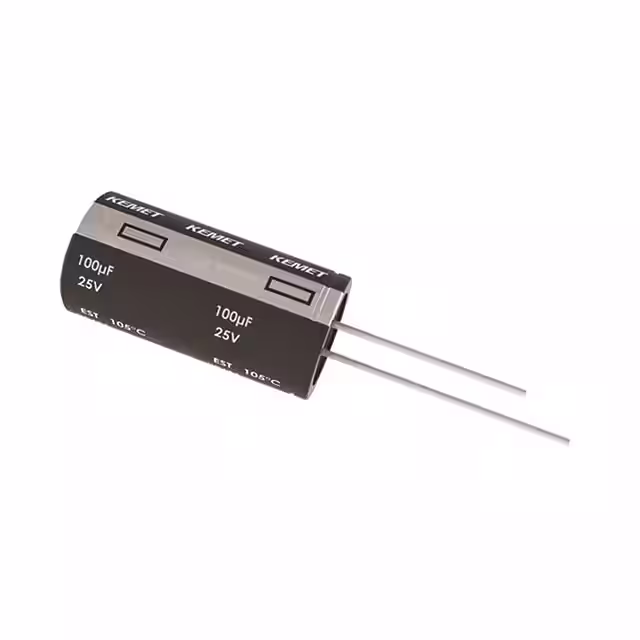

EST158M016AH5AACAP ALUM 1500UF 20% 16V RADIAL |
8,800 | 1.24 |
RFQ |
Datasheet |
Box | EST | Active | 1500 µF | ±20% | 16 V | 52mOhm @ 100kHz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.65 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EKMS501VSN271MR50SCAP ALUM 270UF 20% 500V SNAP |
3,192 | 14.08 |
RFQ |
Datasheet |
Bulk | KMS | Active | 270 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.067 (52.50mm) | - | Through Hole |
|
|
EKMZ451VSN681MR50SCAP ALUM 680UF 20% 450V SNAP |
4,561 | 14.88 |
RFQ |
Datasheet |
Bulk | KMZ | Active | 680 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.2175 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.067 (52.50mm) | - | Through Hole |
|
EEU-FR1C182LCAP ALUM 1800UF 20% 16V RADIAL |
6,398 | 1.27 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 1800 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.976 A @ 120 Hz | 2.47 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
