| Фотографии | Производитель. Часть # | Доступность | Цены | Количество | Таблицы данных | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIL05-1A72-71DRELAY REED SPST 0.5A 5V |
8,642 | 4.49 |
RFQ |
Datasheet |
Tube | SIL | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C |
|
|
SIL03-1A72-71DRELAY REED SPST 0.5A 3V |
6,643 | 4.66 |
RFQ |
Datasheet |
Tube | SIL | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | Diode | PC Pin | - | 2.1 VDC | 0.45 VDC | 0.7 ms | 0.05 ms | -20°C ~ 70°C |
|
DIP05-2A72-21LRELAY REED DPST 1A 5V |
6,811 | 6.87 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
SHV05-1A85-78D2KRELAY REED SPST 1A 5V |
3,565 | 10.74 |
RFQ |
Datasheet |
Tube | SHV | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 22 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 105°C |
|
|
SHV05-1A85-78D4KRELAY REED SPST 1A 5V |
1,401 | 11.00 |
RFQ |
Datasheet |
Tube | SHV | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 35.7 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C |
|
LI24-1A85RELAY REED SPST 1A 24V |
1,983 | 15.47 |
RFQ |
Datasheet |
Tube | LI | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP05-1A72-11LRELAY REED SPST 1A 5V |
8,041 | 4.01 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP05-1A72-11DRELAY REED SPST 1A 5V |
8,934 | 4.33 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
SIL12-1A72-71LRELAY REED SPST 0.5A 12V |
9,836 | 4.38 |
RFQ |
Datasheet |
Tube | SIL | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP05-2A72-21DRELAY REED DPST 1A 5V |
7,815 | 7.49 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
|
DIP05-1C90-51LRELAY REED SPDT 250MA 5V |
7,507 | 9.42 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|

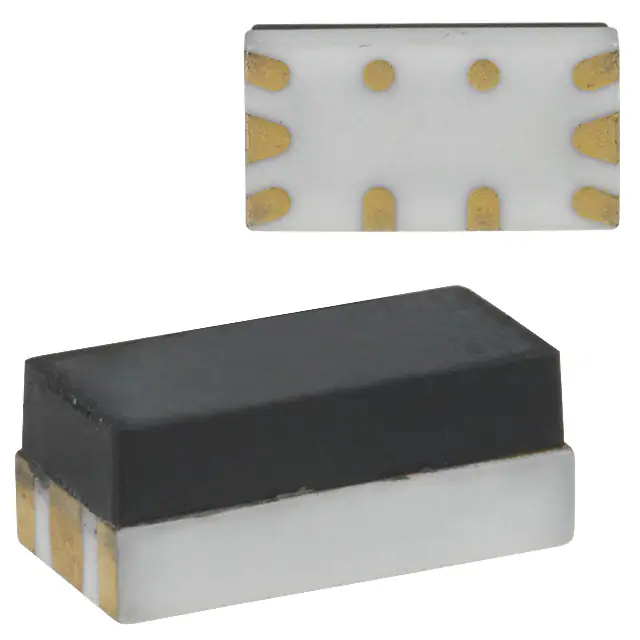

CRR05-1BRELAY REED SPST-NC 500MA 5V |
1,803 | 12.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CRR | Active | Surface Mount | 5VDC | SPST-NC (1 Form B) | 500 mA | 170VAC, 170VDC - Max | 33.3 mA | Non Latching | - | SMD (SMT) Tab | - | 3.75 VDC | 0.75 VDC | 0.6 ms | 0.05 ms | -40°C ~ 125°C |
|

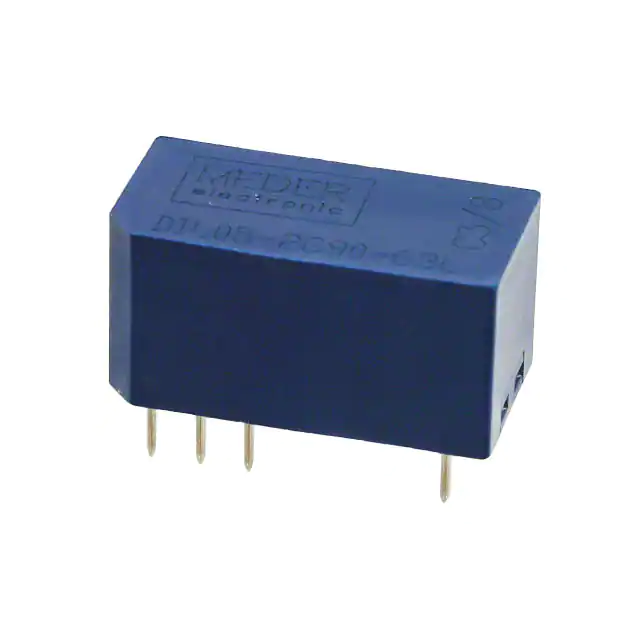

DIL05-2C90-63LRELAY REED DPDT 250MA 5V |
4,846 | 25.01 |
RFQ |
Datasheet |
Tube | DIL | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 175VAC, 175VDC - Max | 33.4 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|

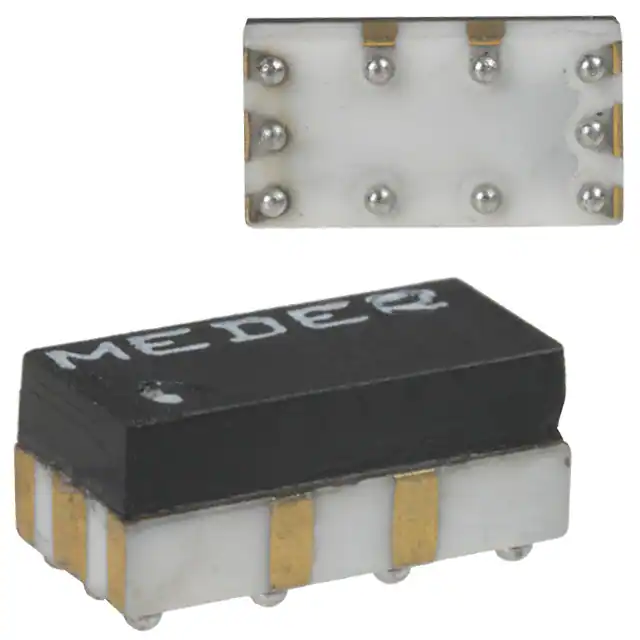

CRR05-1ASRELAY REED SPST 500MA 5V |
9,130 | 9.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CRR | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 33.3 mA | Non Latching | - | BGA | - | 3.75 VDC | 0.75 VDC | 0.6 ms | 0.05 ms | -40°C ~ 125°C |
|
UMS05-1A80-75DRELAY REED SPST 500MA 5V |
8,922 | 6.88 |
RFQ |
Datasheet |
Tube | UMS | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 12.5 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C |
|
DIP24-2A72-21DRELAY REED DPST 1A 24V |
9,336 | 7.00 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
KT12-1A-40L-SMDREED RELAY 1 FORM A 12V SMD |
2,314 | 12.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | KT | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 25 mA | Non Latching | - | Gull Wing | Sealed - Fully | 9 VDC | 1 VDC | - | - | -40°C ~ 100°C |
|
KT24-1A-40L-SMDREED RELAY 1 FORM A 24V SMD |
2,135 | 12.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | KT | Active | Surface Mount | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 13.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | 16 VDC | 2.9 VDC | - | - | -40°C ~ 100°C |
|
|
DIP05-1A72-13LRELAY REED SPST 1A 5V |
7,076 | 4.05 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
DIP12-1A72-12LRELAY REED SPST 1A 12V |
7,152 | 4.19 |
RFQ |
Datasheet |
Tube | DIP | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
